The solid 30 mm-diameter steel (E = 200 GPa) shaft supports two belt pulleys. Assume that the bearing at A can be ideali

Post by answerhappygod »

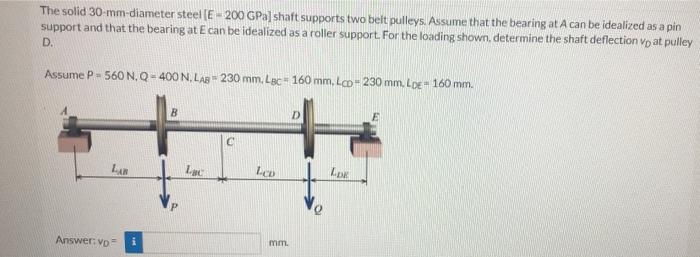

The Solid 30 Mm Diameter Steel E 200 Gpa Shaft Supports Two Belt Pulleys Assume That The Bearing At A Can Be Ideali 1
The Solid 30 Mm Diameter Steel E 200 Gpa Shaft Supports Two Belt Pulleys Assume That The Bearing At A Can Be Ideali 1 (31.95 KiB) Viewed 12 times
The solid 30 mm-diameter steel (E = 200 GPa) shaft supports two belt pulleys. Assume that the bearing at A can be idealized as a pin support and that the bearing at E can be idealized as a roller support. For the loading shown, determine the shaft deflection vp at pulley D. Assume P-560 N, Q-400 N. LAB - 230 mm. Luc - 160 mm.Lco-230 mm. Le = 160 mm. D Le Lac LCD LOR Answer: vp i mm.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
