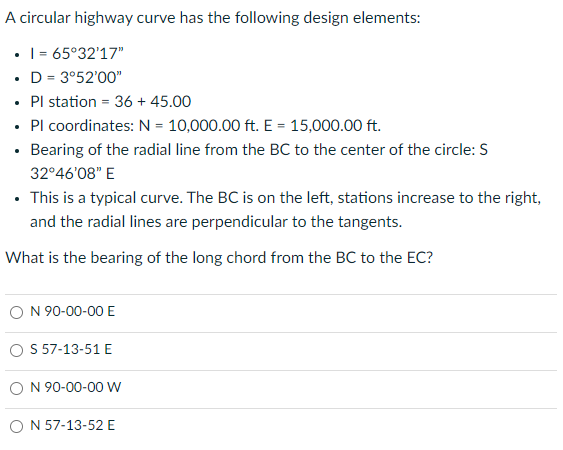

. . A circular highway curve has the following design elements: | = 65°32'17" D = 3.52'00" • Pl station = 36 + 45.00 • Pl coordinates: N = 10,000.00 ft. E = 15,000.00 ft. • Bearing of the radial line from the BC to the center of the circle: S 32°46'08" E • This is a typical curve. The BC is on the left, stations increase to the right, and the radial lines are perpendicular to the tangents. What is the bearing of the long chord from the BC to the EC? N 90-00-00 E S 57-13-51 E ON 90-00-00 W N 57-13-52 E
