15. A beam carries loads as shown in Fig. 4-52. Estimate the maximum bending moment, shearing force and thrust on the be

Post by answerhappygod »

15 A Beam Carries Loads As Shown In Fig 4 52 Estimate The Maximum Bending Moment Shearing Force And Thrust On The Be 1
15 A Beam Carries Loads As Shown In Fig 4 52 Estimate The Maximum Bending Moment Shearing Force And Thrust On The Be 1 (21.2 KiB) Viewed 16 times

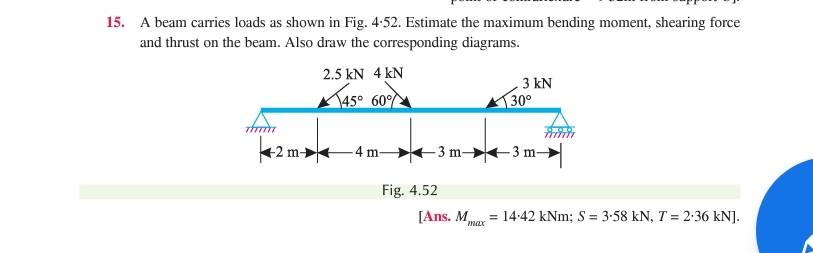

15. A beam carries loads as shown in Fig. 4-52. Estimate the maximum bending moment, shearing force and thrust on the beam. Also draw the corresponding diagrams. 2.5 kN 4 kN 3 kN 130° 450 6002 |42 m 4 m -3 m +3m- Fig. 4.52 [Ans. M = 14-42 kNm; S = 3.58 kN, T = 2-36 kN).
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
