P10-2) Use SOLIDWORKS® to create a solid model of the following Cast Iron object. Use at least one RIB command. 83 - R 4

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

P10-2) Use SOLIDWORKS® to create a solid model of the following Cast Iron object. Use at least one RIB command. 83 - R 4

Post by answerhappygod »

P10 2 Use Solidworks To Create A Solid Model Of The Following Cast Iron Object Use At Least One Rib Command 83 R 4 1
P10 2 Use Solidworks To Create A Solid Model Of The Following Cast Iron Object Use At Least One Rib Command 83 R 4 1 (92.95 KiB) Viewed 10 times

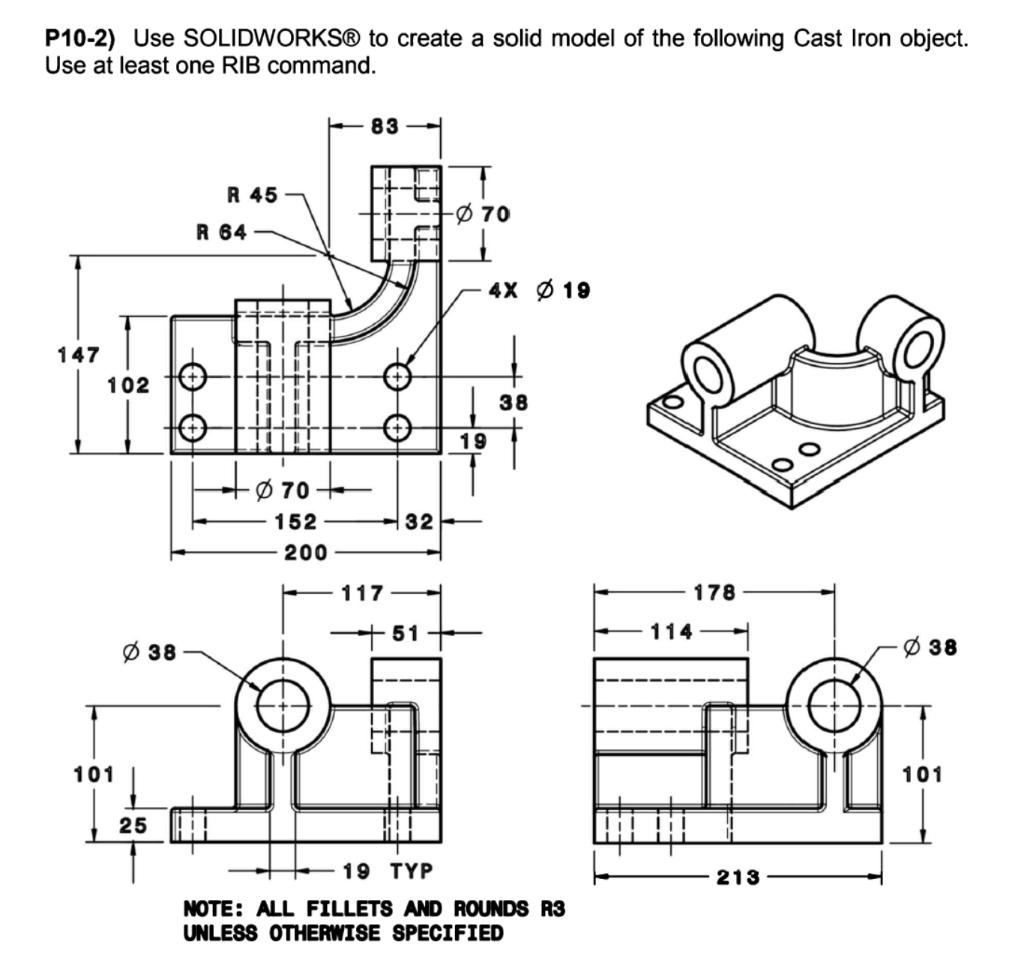

P10-2) Use SOLIDWORKS® to create a solid model of the following Cast Iron object. Use at least one RIB command. 83 - R 45 -Ø 70 R 64 4X 0 19 147 102 38 to 19 0 70 152 200 32- 117 178 51 114 Ø 38 0 38 101 101 25 19 TYP 213 NOTE: ALL FILLETS AND ROUNDS R3 UNLESS OTHERWISE SPECIFIED
