Please assist with steps for the following:
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Please assist with steps for the following:
Please assist with steps for the following:

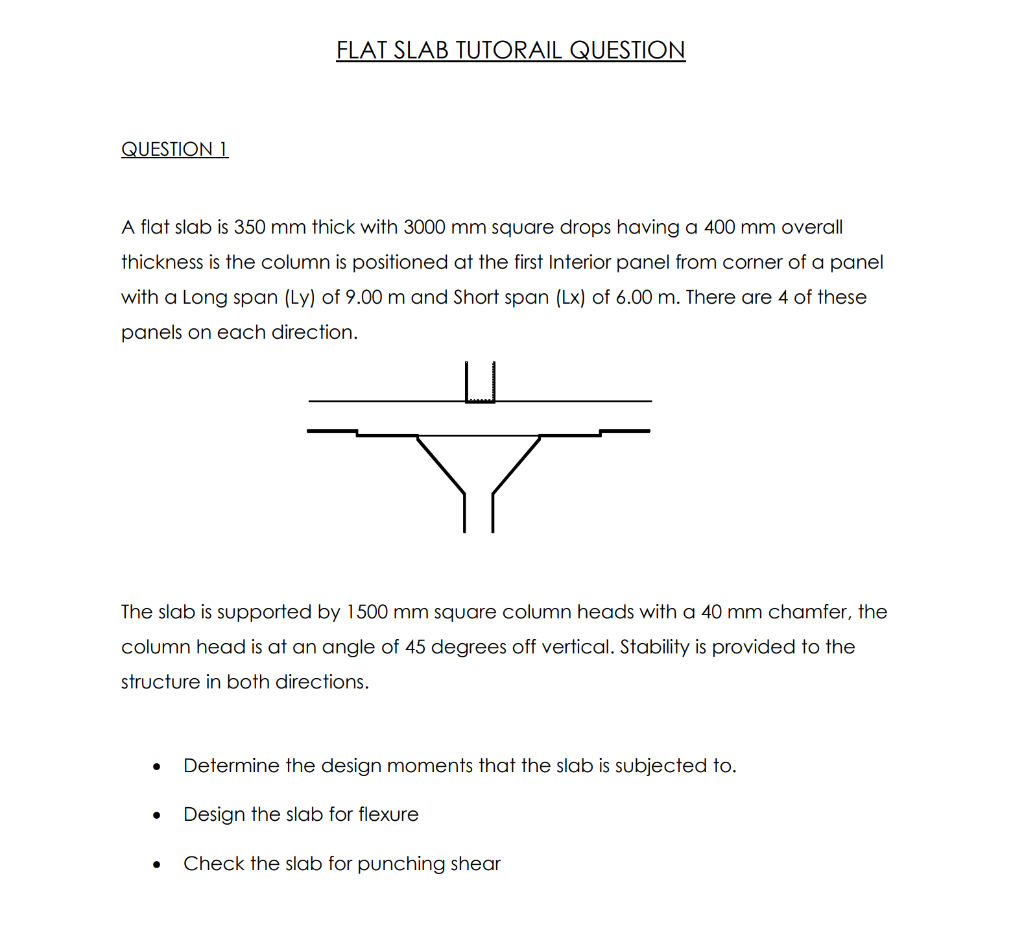

FLAT SLAB TUTORAIL QUESTION QUESTION 1 A flat slab is 350 mm thick with 3000 mm square drops having a 400 mm overall thickness is the column is positioned at the first Interior panel from corner of a panel with a long span (Ly) of 9.00 m and Short span (Lx) of 6.00 m. There are 4 of these panels on each direction. The slab is supported by 1500 mm square column heads with a 40 mm chamfer, the column head is at an angle of 45 degrees off vertical. Stability is provided to the structure in both directions. Determine the design moments that the slab is subjected to. . Design the slab for flexure . Check the slab for punching shear
FLAT SLAB TUTORAIL QUESTION QUESTION 1 A flat slab is 350 mm thick with 3000 mm square drops having a 400 mm overall thickness is the column is positioned at the first Interior panel from corner of a panel with a long span (Ly) of 9.00 m and Short span (Lx) of 6.00 m. There are 4 of these panels on each direction. The slab is supported by 1500 mm square column heads with a 40 mm chamfer, the column head is at an angle of 45 degrees off vertical. Stability is provided to the structure in both directions. Determine the design moments that the slab is subjected to. . Design the slab for flexure . Check the slab for punching shear
