max [Ans. Smer = - 15 kN, M. = - 49 kNm] 3. A cantilever PQRS, 7m long is fixed at P such that PQ = QR = 2m and RS = 3m.

[answerhappygod]

Max Ans Smer 15 Kn M 49 Knm 3 A Cantilever Pqrs 7m Long Is Fixed At P Such That Pq Qr 2m And Rs 3m 1 (25.08 KiB) Viewed 22 times

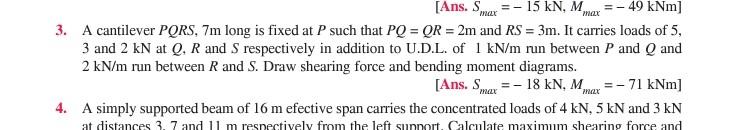

max [Ans. Smer = - 15 kN, M. = - 49 kNm] 3. A cantilever PQRS, 7m long is fixed at P such that PQ = QR = 2m and RS = 3m. It carries loads of 5, 3 and 2 kN at Q, R and S respectively in addition to U.D.L. of 1 kN/m run between P and Q and 2 kN/m run between R and S. Draw shearing force and bending moment diagrams. [Ans. Smax = - 18 kN, M,max =- 71 kNm] 4. A simply supported beam of 16 m efective span carries the concentrated loads of 4 kN, 5 kN and 3 kN at distances 3.7 and 11 m respectively from the left support. Calculate maximum shearing force and
