Draw the moment diagram for the beam. Begin by placing the lines of discontinuity. Place the appropriate function betwee

[answerhappygod]

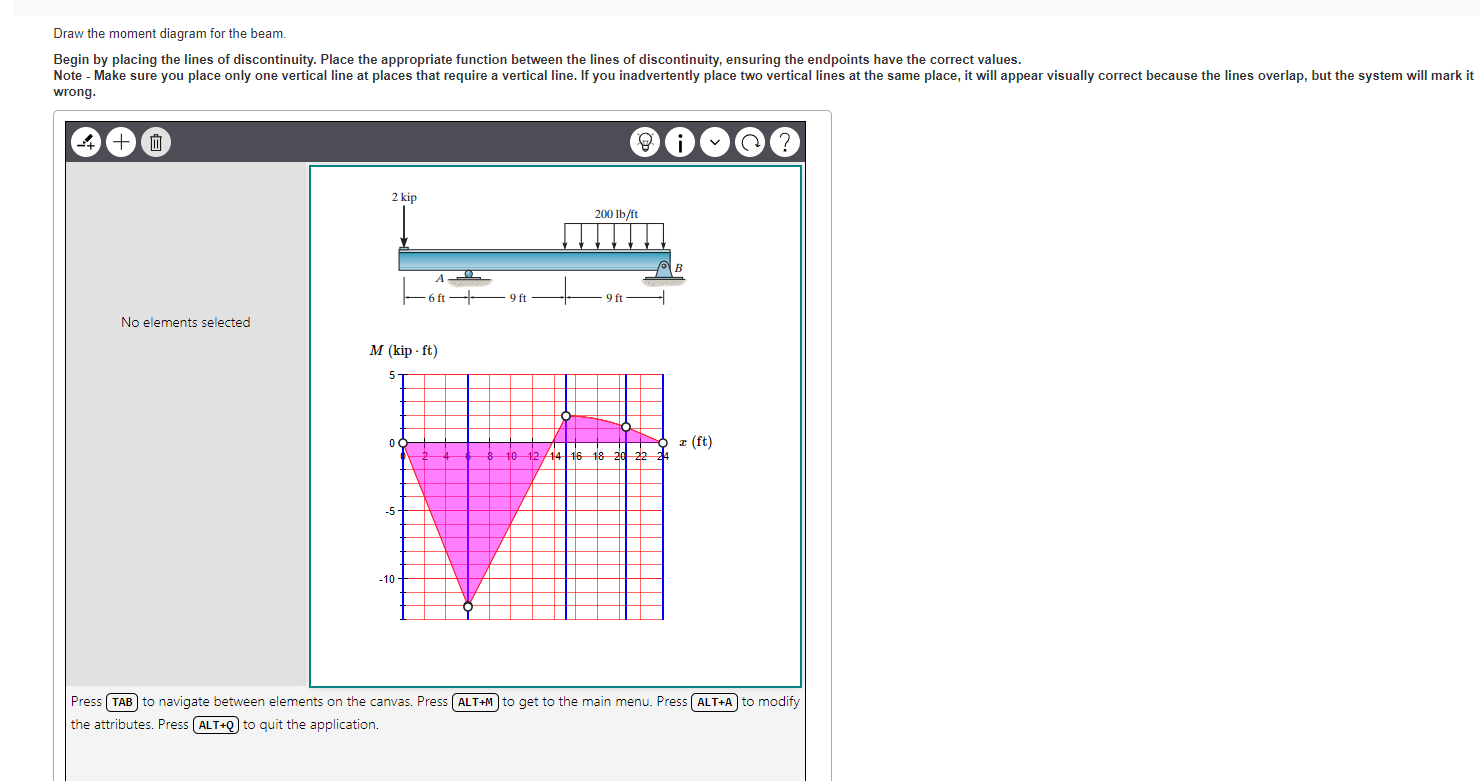

Draw The Moment Diagram For The Beam Begin By Placing The Lines Of Discontinuity Place The Appropriate Function Betwee 1 (60.34 KiB) Viewed 11 times

Draw the moment diagram for the beam. Begin by placing the lines of discontinuity. Place the appropriate function between the lines of discontinuity, ensuring the endpoints have the correct values. Note - Make sure you place only one vertical line at places that require a vertical line. If you inadvertently place two vertical lines at the same place, it will appear visually correct because the lines overlap, but the system will mark it wrong. +0 2 kip 200 lb/ft ( В 6 ft 9 ft No elements selected M (kip- ft) 5 0 (ft) 14 16 18 20 22 -5 - 10 Press TAB to navigate between elements on the canvas. Press ALT+M to get to the main menu. Press ALT+A to modify the attributes. Press ALT+Q to quit the application.
