A B) D E Gider 1 Jose EQ. Seam 2 YA EQ 3 Guder EQ. EQ EQ EQ X See the framing plan above. Assume that: • There are two g

[answerhappygod]

A B D E Gider 1 Jose Eq Seam 2 Ya Eq 3 Guder Eq Eq Eq Eq X See The Framing Plan Above Assume That There Are Two G 1 (54.57 KiB) Viewed 32 times

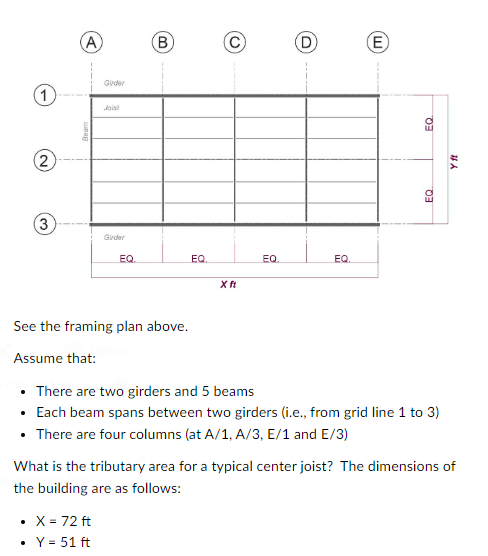

A B) D E Gider 1 Jose EQ. Seam 2 YA EQ 3 Guder EQ. EQ EQ EQ X See the framing plan above. Assume that: • There are two girders and 5 beams • Each beam spans between two girders (i.e., from grid line 1 to 3) There are four columns (at A/1, A/3, E/1 and E/3) What is the tributary area for a typical center joist? The dimensions of the building are as follows: • X = 72 ft Y = 51 ft .
