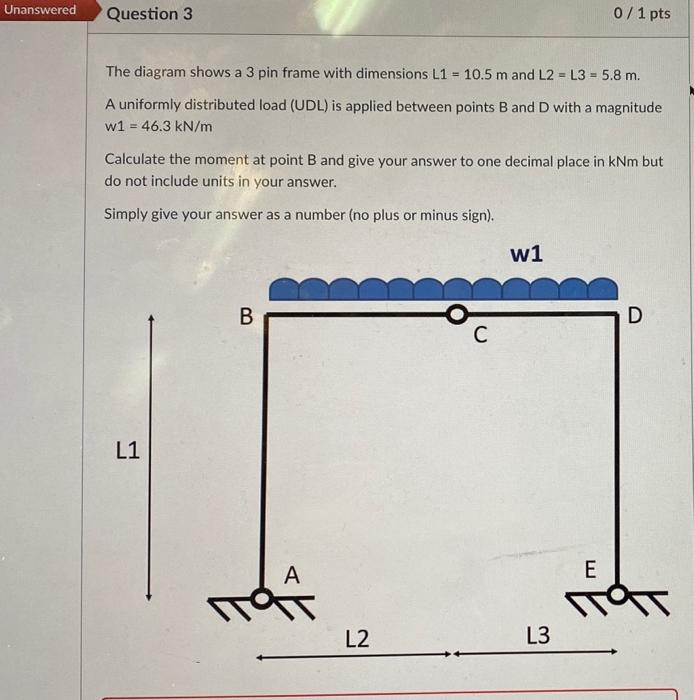

Unanswered Question 3 0/1 pts The diagram shows a 3 pin frame with dimensions L1 - 10.5 m and L2 - L3 - 5.8 m. A uniformly distributed load (UDL) is applied between points B and D with a magnitude w1 = 46.3 kN/m Calculate the moment at point B and give your answer to one decimal place in kNm but do not include units in your answer. Simply give your answer as a number (no plus or minus sign). w1 B D C L1 А. E TOT L2 L3
