20 in 0.95 1.35 1.5 in 0.7 50 lb 50 lb 1.2 5.0 in 50 lb 50 lb 1.2 50 lb 50 lb 1.10 in 0.5 1.50 in 0.5 0.7 1.0 Given is s

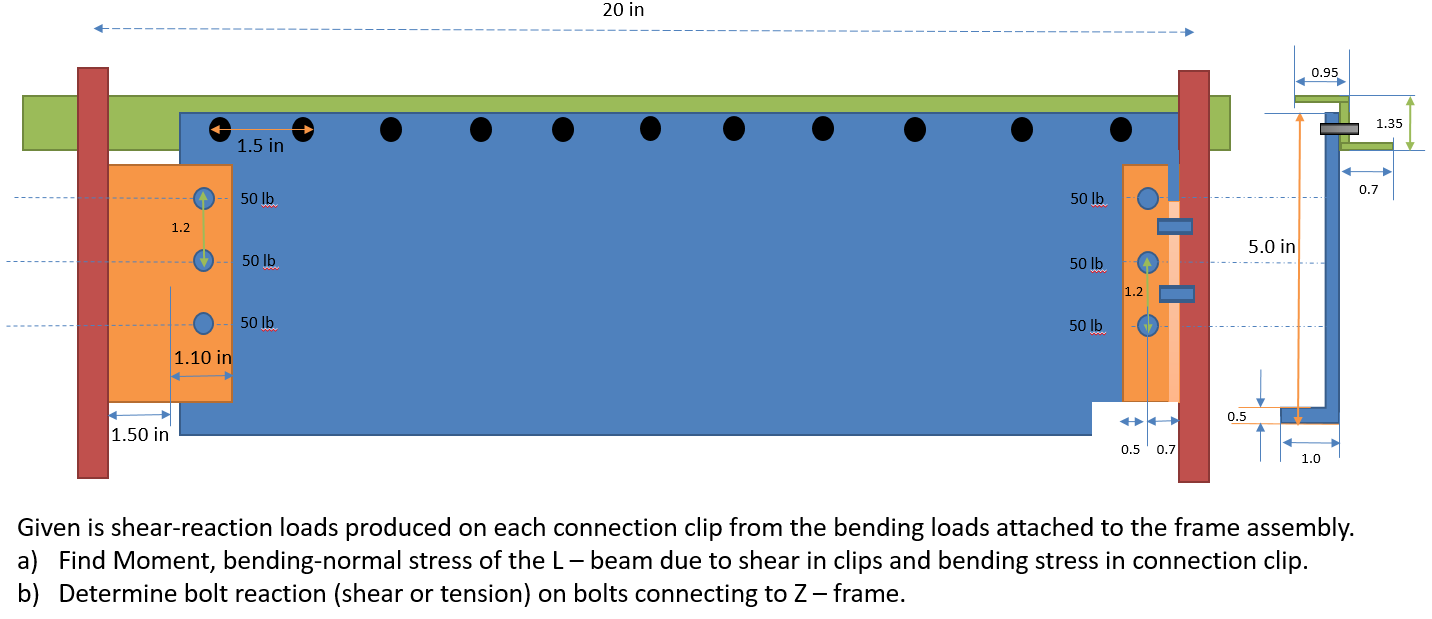

20 in 0.95 1.35 1.5 in 0.7 50 lb 50 lb 1.2 5.0 in 50 lb 50 lb 1.2 50 lb 50 lb 1.10 in 0.5 1.50 in 0.5 0.7 1.0 Given is shear-reaction loads produced on each connection clip from the bending loads attached to the frame assembly. a) Find Moment, bending-normal stress of the L-beam due to shear in clips and bending stress in connection clip. b) Determine bolt reaction (shear or tension) on bolts connecting to Z-frame.
