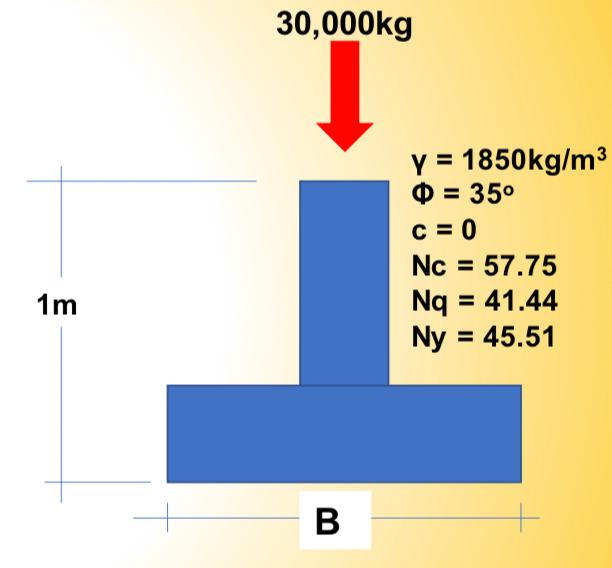

A square footing is shown in the figure below. The footing
will carry a gross mass of 30,000kg. Using the FS of 3, determine
the size of the footing, B.
Given:
γ = 1850kg/m3 Φ = 35o
c=0
Nc = 57.75
A Square Footing Is Shown In The Figure Below The Footing Will Carry A Gross Mass Of 30 000kg Using The Fs Of 3 Deter 1 (23.91 KiB) Viewed 13 times
30,000kg y = 1850kg/m3 Q = 35° c = 0 Nc = 57.75 Nq = 41.44 Ny = 45.51 1m = B +
