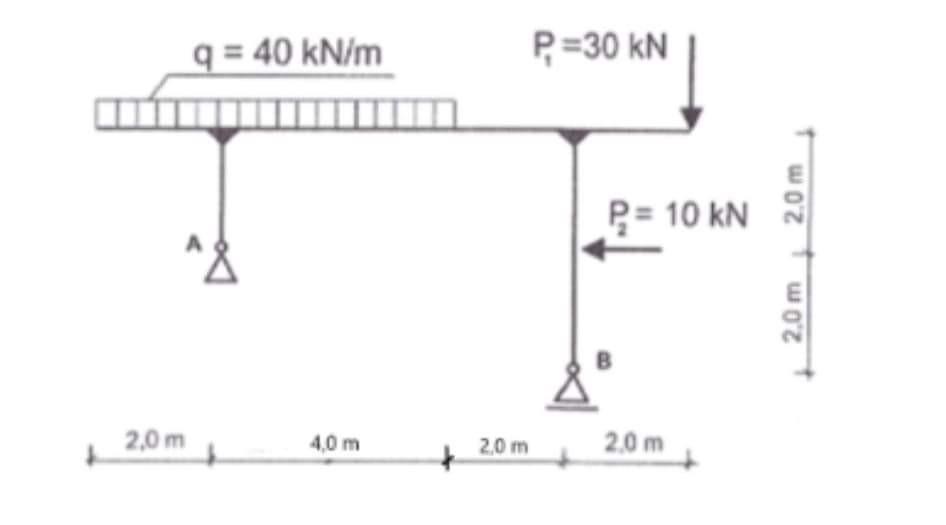

q = 40 kN/m P=30 KN = 10 KN 20 2.0 m B 2,0 m 4,0 m 2.0 m 20 m

Post by answerhappygod »

Q 40 Kn M P 30 Kn 10 Kn 20 2 0 M B 2 0 M 4 0 M 2 0 M 20 M 1
Q 40 Kn M P 30 Kn 10 Kn 20 2 0 M B 2 0 M 4 0 M 2 0 M 20 M 1 (17.82 KiB) Viewed 21 times
A=190KN B=80KN
ITS CRUCIAL TO SHOW CALCULATIONS FOR DIAGRAMS
FIBD Q,N,M
q = 40 kN/m P=30 KN = 10 KN 20 2.0 m B 2,0 m 4,0 m 2.0 m 20 m
