q0 in lb/ft = 63 (Also please show me how to solve maximum bending moment) Thank you this is all the data that is given

[answerhappygod]

q0 in lb/ft = 63
(Also please show me how to solve maximum bending moment) Thank
you
this is all the data that is given

Q0 In Lb Ft 63 Also Please Show Me How To Solve Maximum Bending Moment Thank You This Is All The Data That Is Given 1 (31.31 KiB) Viewed 16 times

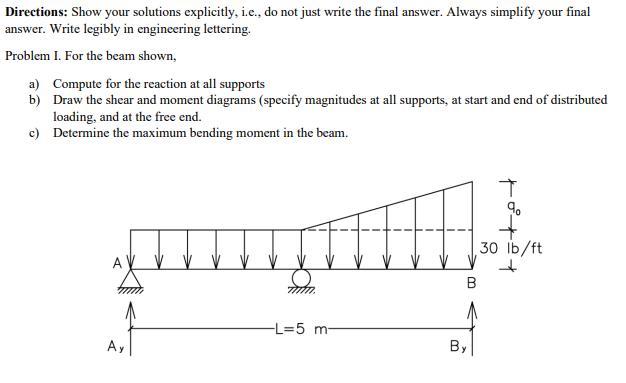

Directions: Show your solutions explicitly, i.e., do not just write the final answer. Always simplify your final answer. Write legibly in engineering lettering. Problem I. For the beam shown, a) Compute for the reaction at all supports b) Draw the shear and moment diagrams (specify magnitudes at all supports, at start and end of distributed loading, and at the free end. c) Determine the maximum bending moment in the beam. † 90 AV and 30 lb/ft 1 B 71 -L=5 m Ay By
