Home Work: A cantilever shaft (d=20mm) is subjected to tensile load of (P=8 kN) and bending force of (F=0.55 kN) and tor

Post by answerhappygod »

Home Work A Cantilever Shaft D 20mm Is Subjected To Tensile Load Of P 8 Kn And Bending Force Of F 0 55 Kn And Tor 1
Home Work A Cantilever Shaft D 20mm Is Subjected To Tensile Load Of P 8 Kn And Bending Force Of F 0 55 Kn And Tor 1 (25.26 KiB) Viewed 27 times

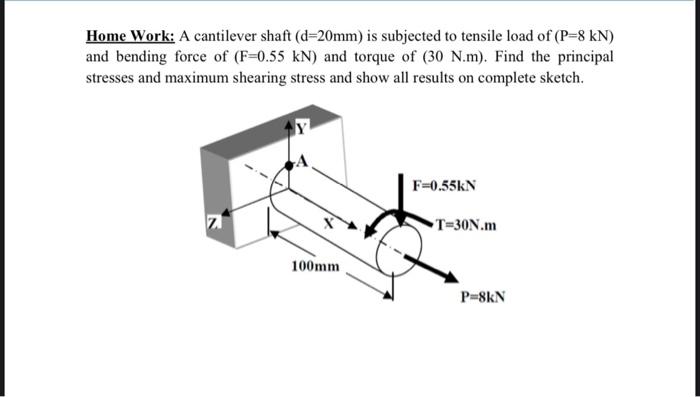

Home Work: A cantilever shaft (d=20mm) is subjected to tensile load of (P=8 kN) and bending force of (F=0.55 kN) and torque of (30 N.m). Find the principal stresses and maximum shearing stress and show all results on complete sketch. F=0.55kN X T=30N.m 100mm P=8kN
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
