60° Question 2 [ 20-Points] KUK A square footing, 2 m by 2 m is to be constructed 1.22 m below the ground surface, as sh

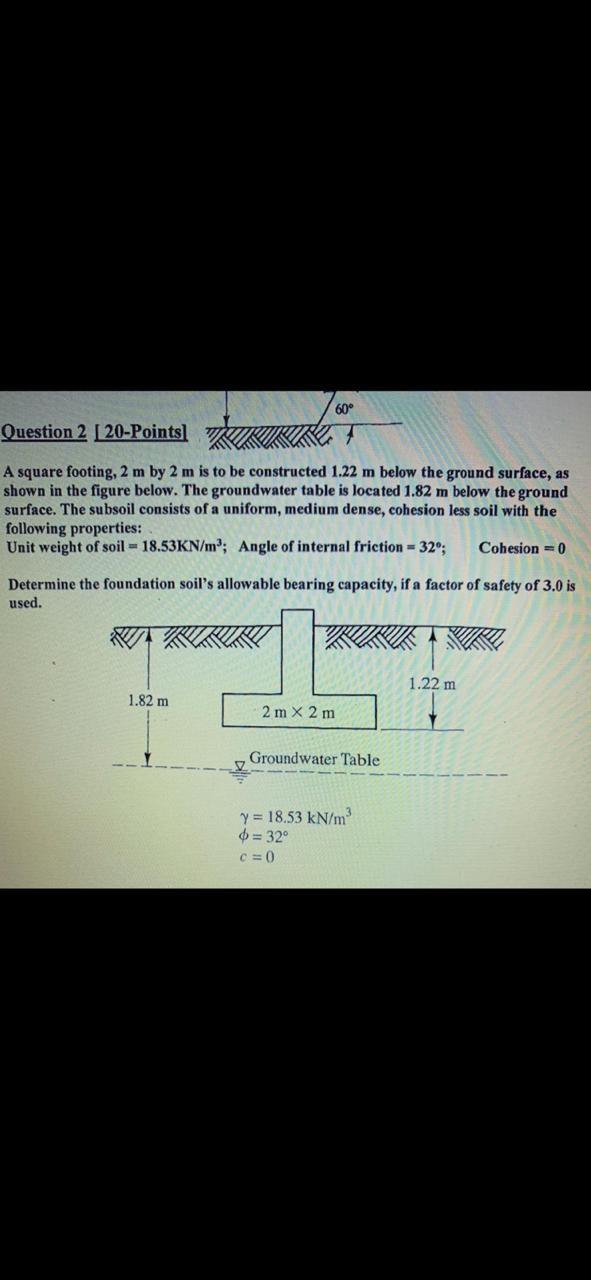

60° Question 2 [ 20-Points] KUK A square footing, 2 m by 2 m is to be constructed 1.22 m below the ground surface, as shown in the figure below. The groundwater table is located 1.82 m below the ground surface. The subsoil consists of a uniform, medium dense, cohesion less soil with the following properties: Unit weight of soil = 18.53KN/mº; Angle of internal friction = 32°; Cohesion=0 Determine the foundation soil's allowable bearing capacity, if a factor of safety of 3.0 is used. 1.22 m 1.82 m 2 m X 2 m Groundwater Table Y = 18.53 kN/m 0 = 32 C=0
