Use method of sections or method of joints to solve for the following unknowns on the truss system shown in figure 2 bel

[answerhappygod]

Use Method Of Sections Or Method Of Joints To Solve For The Following Unknowns On The Truss System Shown In Figure 2 Bel 1 (23.77 KiB) Viewed 10 times

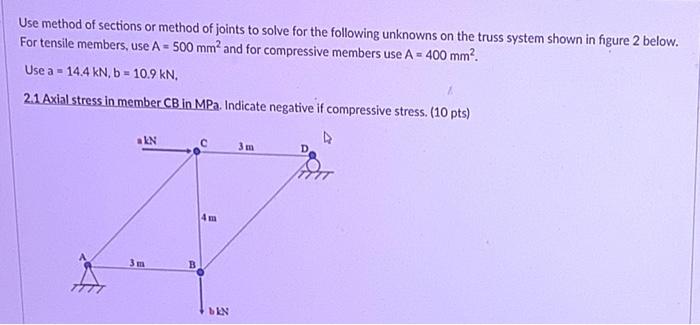

Use method of sections or method of joints to solve for the following unknowns on the truss system shown in figure 2 below. For tensile members, use A = 500 mmand for compressive members use A = 400 mm?. Use a - 14.4 kN, b = 10.9 kN. 2.1 Axial stress in member CB in MPa. Indicate negative if compressive stress. (10 pts) KN 3 m 4 m 3 m DEN
