1 Find The Maximum Shear And Moment Values By Using The Shear And Moment Diagram The Section Of The Rectangular Beam Ha 1 (94.61 KiB) Viewed 18 times
Shear and Moment Diagram. please answer within 20-30 mins or ASAP thank you! will upvote

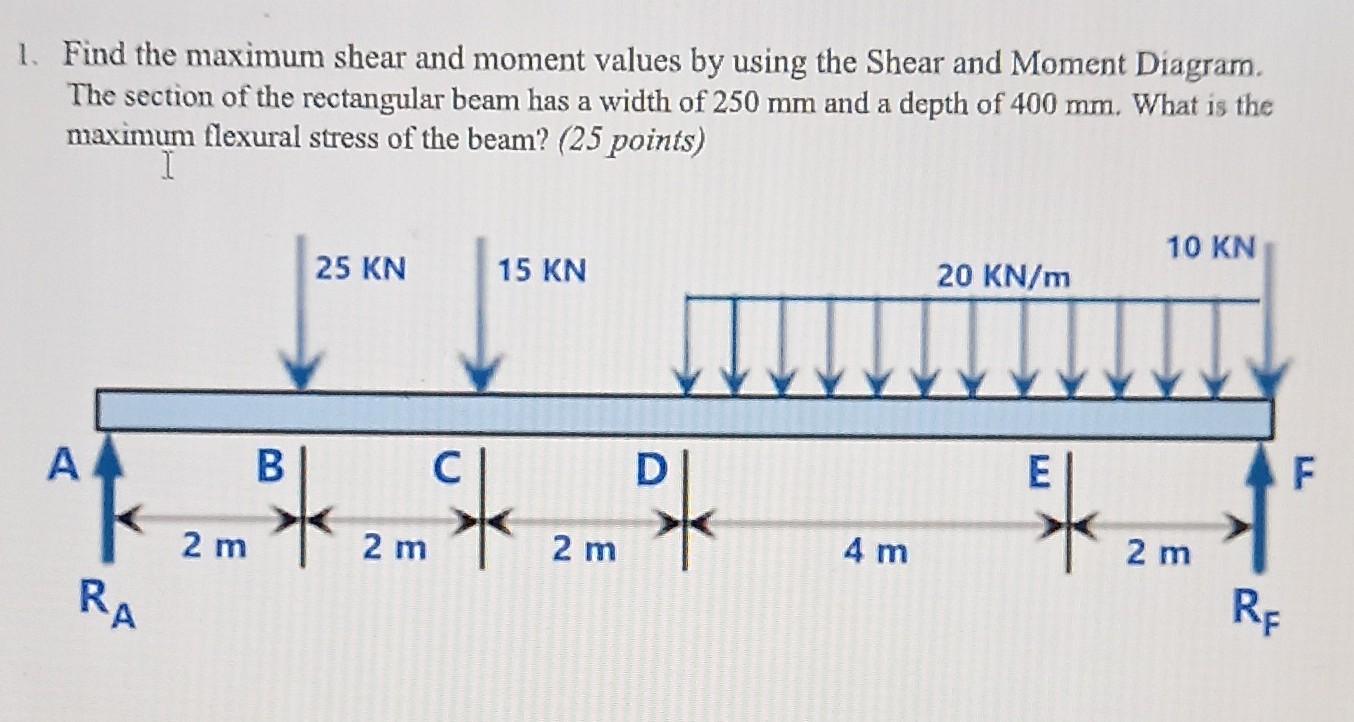

1. Find the maximum shear and moment values by using the Shear and Moment Diagram The section of the rectangular beam has a width of 250 mm and a depth of 400 mm. What is the maximum flexural stress of the beam? (25 points) I 10 KN 25 KN 15 KN 20 KN/m А B D E F 있 있 2 m 2 m 2 m 4 m 2 m RE
