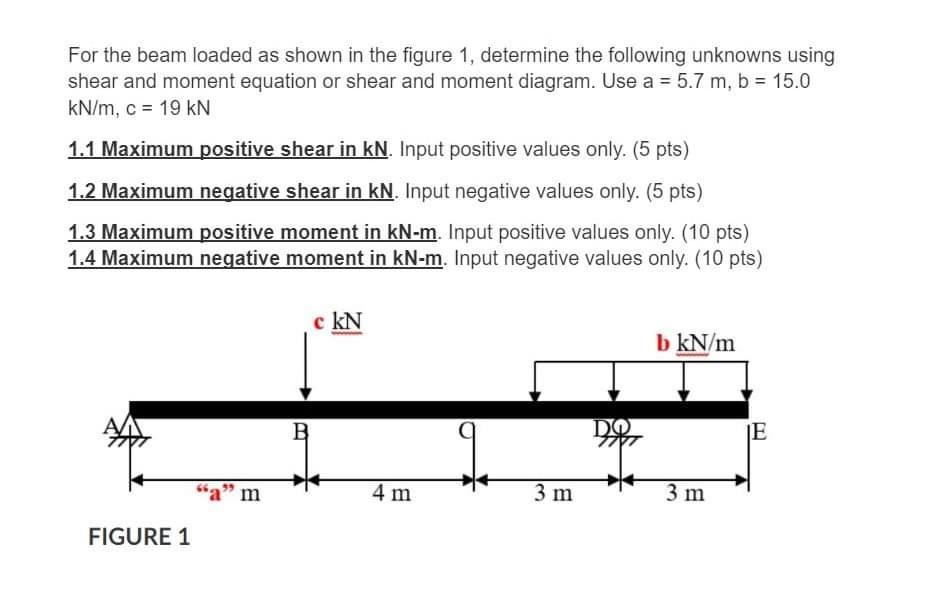

For the beam loaded as shown in the figure 1, determine the following unknowns using shear and moment equation or shear and moment diagram. Use a = 5.7 m, b = 15.0 kN/m, c = 19 KN 1.1 Maximum positive shear in kN. Input positive values only. (5 pts) 1.2 Maximum negative shear in kN. Input negative values only. (5 pts) 1.3 Maximum positive moment in kN-m. Input positive values only. (10 pts) 1.4 Maximum negative moment in kN-m. Input negative values only. (10 pts) c kN b kN/m AA B DO ЈЕ “a” m 4 m 3 m 3 3 m FIGURE 1
