I - Shear and Moment Diagram 1. Find the maximum shear and moment values by using the Shear and Moment Diagram. The sect

Post by answerhappygod »

I Shear And Moment Diagram 1 Find The Maximum Shear And Moment Values By Using The Shear And Moment Diagram The Sect 1
I Shear And Moment Diagram 1 Find The Maximum Shear And Moment Values By Using The Shear And Moment Diagram The Sect 1 (39.8 KiB) Viewed 12 times

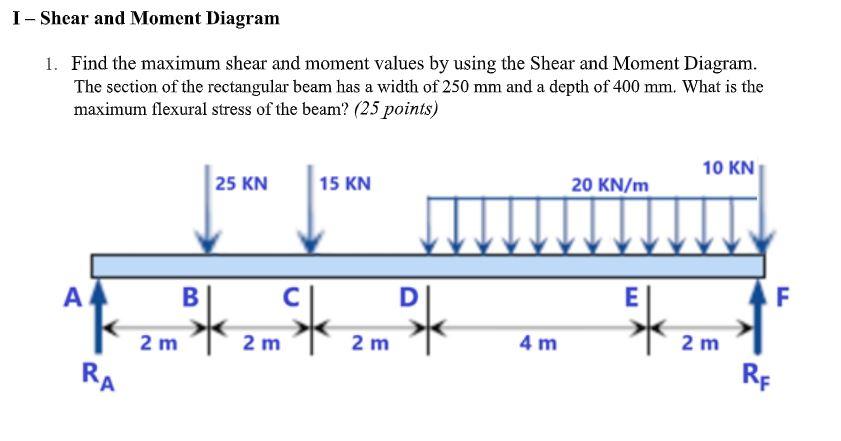

I - Shear and Moment Diagram 1. Find the maximum shear and moment values by using the Shear and Moment Diagram. The section of the rectangular beam has a width of 250 mm and a depth of 400 mm. What is the maximum flexural stress of the beam? (25 points) 10 KN 25 KN 15 KN 20 KN/m A B D E F 2 m 2 m 2 m 4 m 2 m RA RE
