Question 3: Find the strut loads for each level for the long braces system given below. Horizontal struts are spaced at

[answerhappygod]

Question 3 Find The Strut Loads For Each Level For The Long Braces System Given Below Horizontal Struts Are Spaced At 1 (25.23 KiB) Viewed 15 times

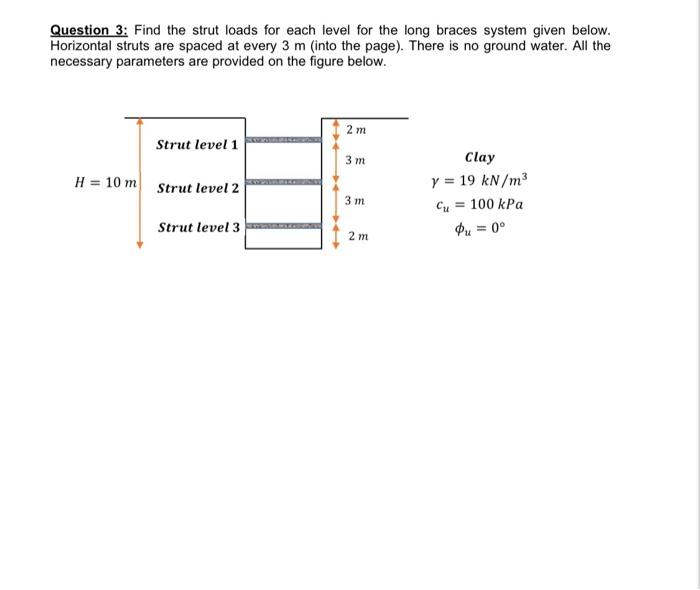

Question 3: Find the strut loads for each level for the long braces system given below. Horizontal struts are spaced at every 3 m (into the page). There is no ground water. All the necessary parameters are provided on the figure below. 2 m Strut level 1 3 m H = 10 m Strut level 2 3 m Clay y = 19 kN/m3 Cu = 100 kPa фи = 0° Strut level 3 2 m
