DIRECTION: Answer the following: The beam shown is laterally braced at A, B, C, and D. Determine the following: a. (30 p

[answerhappygod]

Direction Answer The Following The Beam Shown Is Laterally Braced At A B C And D Determine The Following A 30 P 1 (118.08 KiB) Viewed 14 times

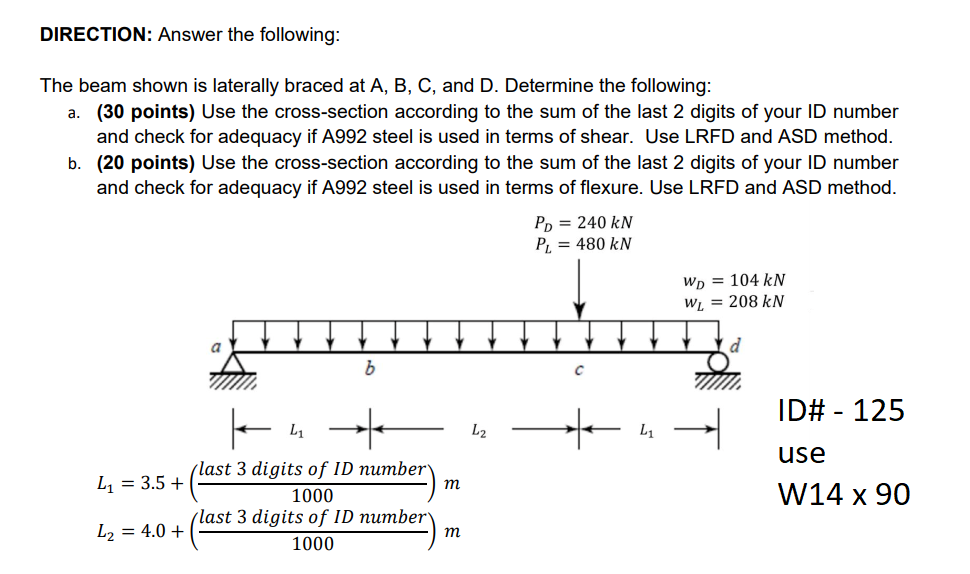

DIRECTION: Answer the following: The beam shown is laterally braced at A, B, C, and D. Determine the following: a. (30 points) Use the cross-section according to the sum of the last 2 digits of your ID number and check for adequacy if A992 steel is used in terms of shear. Use LRFD and ASD method. b. (20 points) Use the cross-section according to the sum of the last 2 digits of your ID number and check for adequacy if A992 steel is used in terms of flexure. Use LRFD and ASD method. PD = 240 kN PL = 480 KN WD = 104 KN WL = 208 kN d b ID# - 125 L1 L2 L1 7 use m last 3 digits of ID number L1 = 3.5+ 1000 (last 3 digits of ID number L2 = 4.0 + 1000 W14 x 90 m
