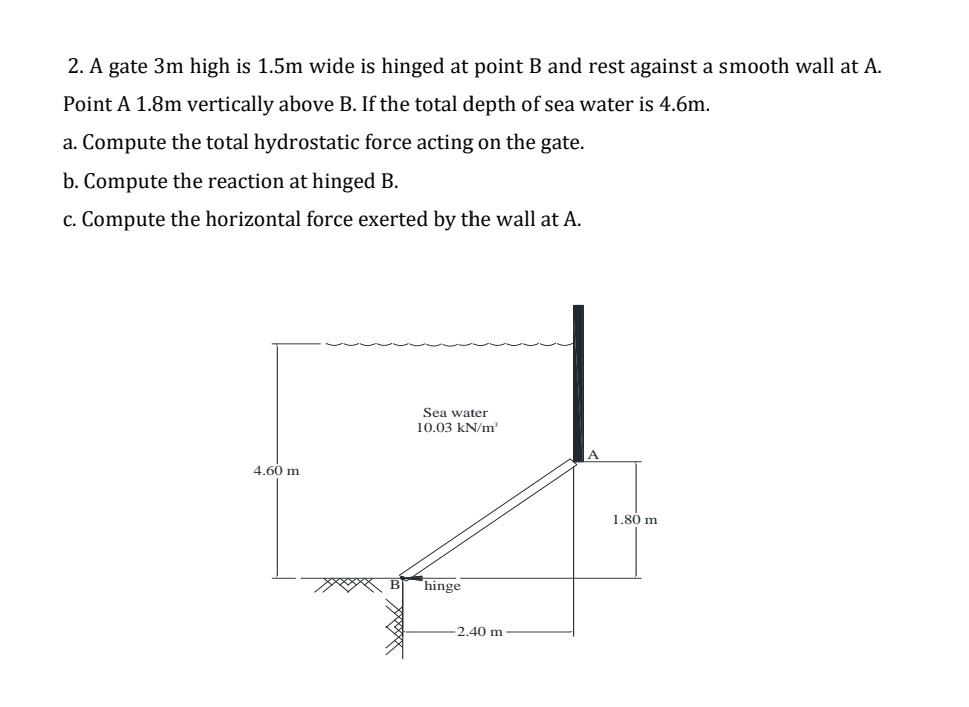

2. A gate 3m high is 1.5m wide is hinged at point B and rest against a smooth wall at A. Point A 1.8m vertically above B. If the total depth of sea water is 4.6m. a. Compute the total hydrostatic force acting on the gate. b. Compute the reaction at hinged B. c. Compute the horizontal force exerted by the wall at A. Sea water 10.03 kN/m 4.60 m 1.80 m hinge -2.40 m
2. A gate 3m high is 1.5m wide is hinged at point B and rest against a smooth wall at A. Point A 1.8m vertically above B. If the total depth of sea water is 4.6m. a. Compute the total hydrostatic force acting on the gate. b. Compute the reaction at hinged B. c. Compute the horizontal force exerted by the wall at A. Sea water 10.03 kN/m 4.60 m 1.80 m hinge -2.40 m
