Problem ) For the series/parallel pipe system shown, determine the total head loss in the system if the discharge in lin

Post by answerhappygod »

Problem For The Series Parallel Pipe System Shown Determine The Total Head Loss In The System If The Discharge In Lin 1
Problem For The Series Parallel Pipe System Shown Determine The Total Head Loss In The System If The Discharge In Lin 1 (56.58 KiB) Viewed 11 times

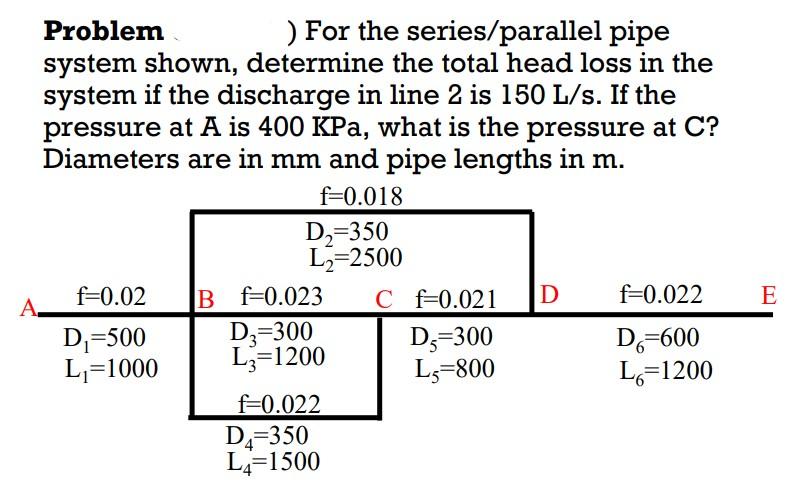

Problem ) For the series/parallel pipe system shown, determine the total head loss in the system if the discharge in line 2 is 150 L/s. If the pressure at A is 400 KPa, what is the pressure at C? Diameters are in mm and pipe lengths in m. f=0.018 D2=350 L2=2500 A f=0.02 Bf=0.023 Cf=0.021 D f=0.022 Di =500 D>=300 Dz=300 D =600 Ly=1000 L3=1200 L3=800 L=1200 f=0.022 DA=350 L4=1500 E :
