Write the shear moment equations per segment. Solve for the Maximum shear and moment using the equations formulated and

Post by answerhappygod »

Write The Shear Moment Equations Per Segment Solve For The Maximum Shear And Moment Using The Equations Formulated And 1
Write The Shear Moment Equations Per Segment Solve For The Maximum Shear And Moment Using The Equations Formulated And 1 (29.08 KiB) Viewed 30 times

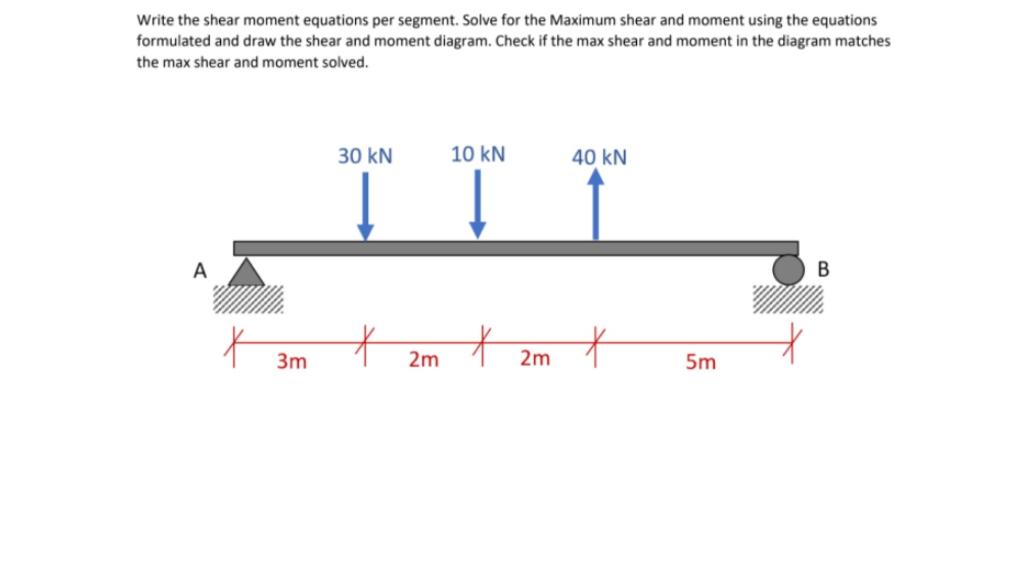

Write the shear moment equations per segment. Solve for the Maximum shear and moment using the equations formulated and draw the shear and moment diagram. Check if the max shear and moment in the diagram matches the max shear and moment solved. 30 kN 10 KN 40 KN А B t X 十 t X 3m 2m 2m 5m
