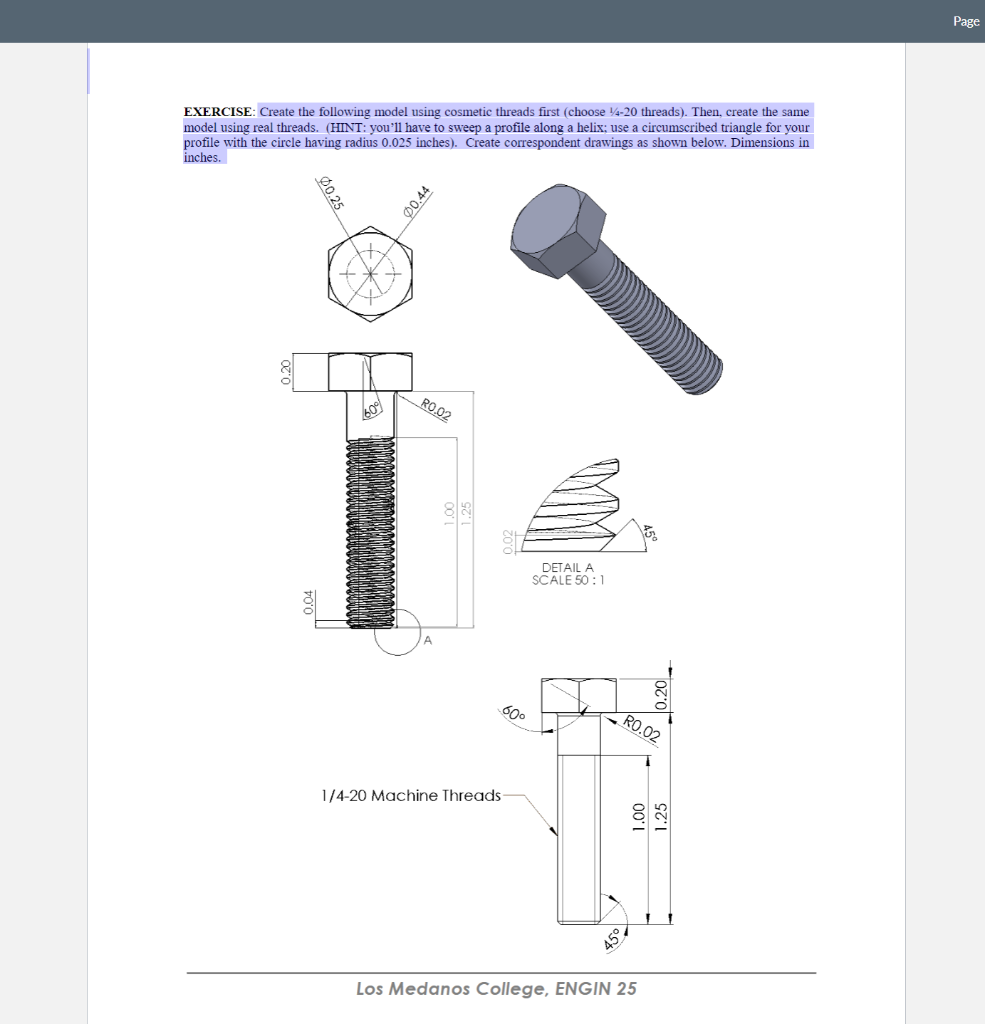

Page EXERCISE: Create the following model using cosmetic threads first (choose 14-20 threads). Then, create the same model using real threads. (HINT: you'll have to sweep a profile along a helix; use a circumscribed triangle for your profile with the circle having radius 0.025 inches). Create correspondent drawings as shown below. Dimensions in inches. 00.25 00.44 R0.02 609 DETAIL A SCALE 50:1 0.20 600 RO.O2 1/4-20 Machine Threads 1.00 1.25 45° Los Medanos College, ENGIN 25
