P6-7) Create an orthographic projection of the following object. Draw an auxiliary view that shows the angled feature tr

Post by answerhappygod »

P6 7 Create An Orthographic Projection Of The Following Object Draw An Auxiliary View That Shows The Angled Feature Tr 1
P6 7 Create An Orthographic Projection Of The Following Object Draw An Auxiliary View That Shows The Angled Feature Tr 1 (356.65 KiB) Viewed 10 times

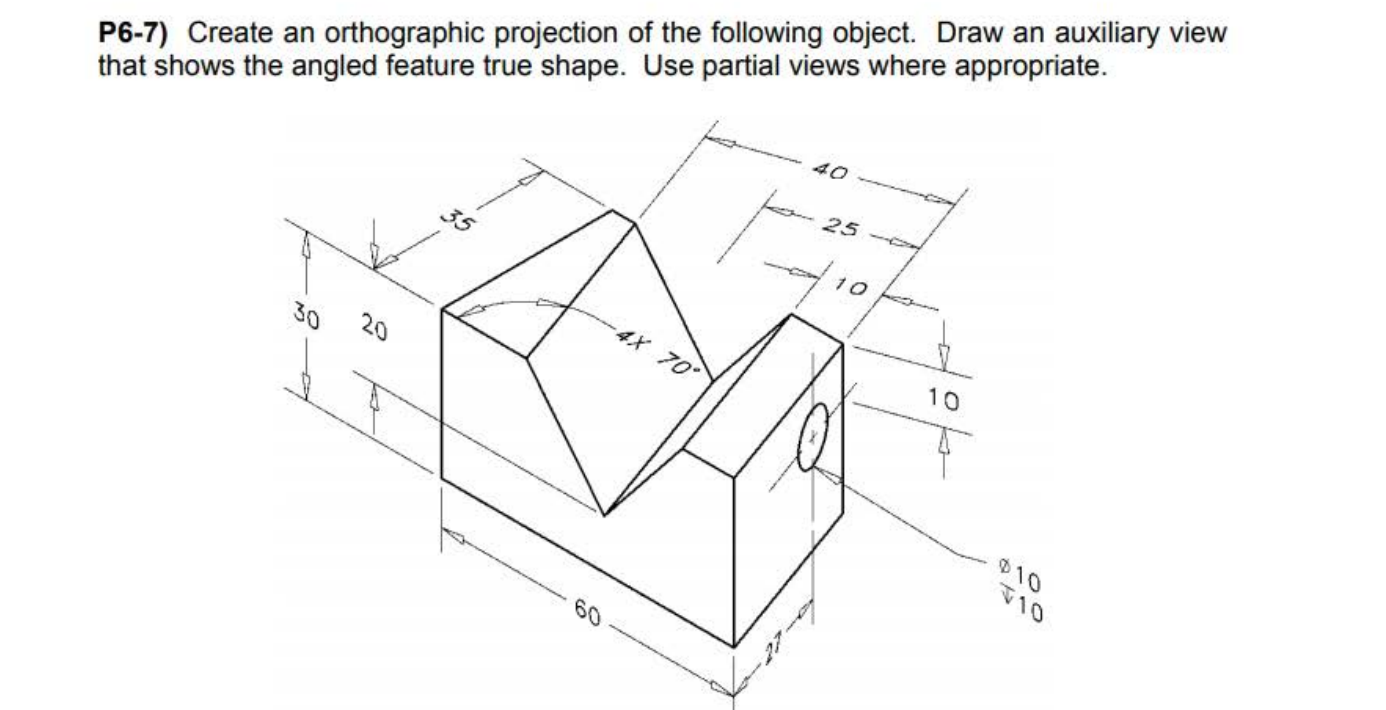

P6-7) Create an orthographic projection of the following object. Draw an auxiliary view that shows the angled feature true shape. Use partial views where appropriate. 40 25 --10 30 20 4X 70 10 80
