QUESTION 2 In the truss shown in Figure AQ2, determine (20 Marks) a) the forces in ALL members using pin joint analysis,

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

QUESTION 2 In the truss shown in Figure AQ2, determine (20 Marks) a) the forces in ALL members using pin joint analysis,

Post by answerhappygod »

Question 2 In The Truss Shown In Figure Aq2 Determine 20 Marks A The Forces In All Members Using Pin Joint Analysis 1
Question 2 In The Truss Shown In Figure Aq2 Determine 20 Marks A The Forces In All Members Using Pin Joint Analysis 1 (108.88 KiB) Viewed 43 times

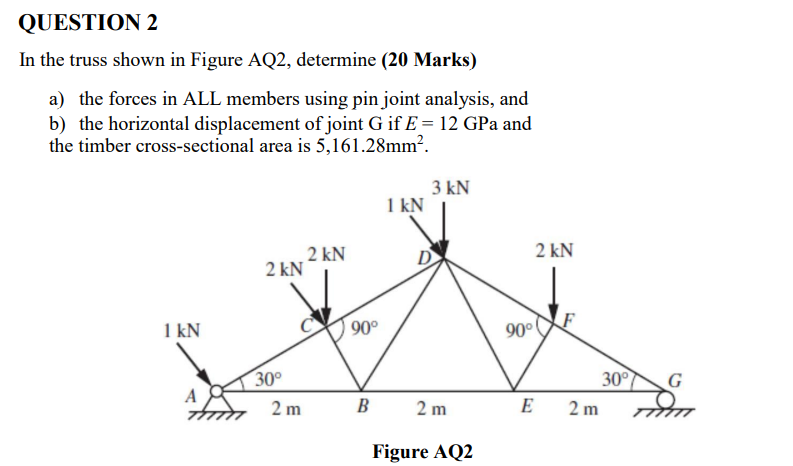

QUESTION 2 In the truss shown in Figure AQ2, determine (20 Marks) a) the forces in ALL members using pin joint analysis, and b) the horizontal displacement of joint Gif E = 12 GPa and the timber cross-sectional area is 5,161.28mm². 3 kN 1 kN 2 KN 2 kN 2 KN 1 kN 90° 90° 30° 30° 2 m B 2 m E 2 m Figure AQ2
