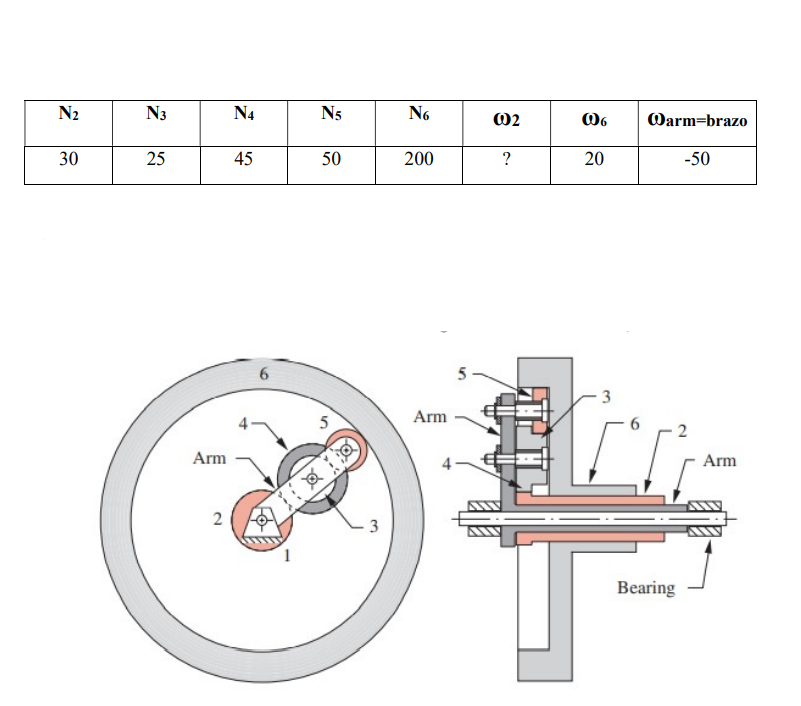

3.- The figure shows a train of planetary engravings of the
compound type (not to scale). Which has the following data:
Where:
N is the number of teeth.
ω is the angular velocity.
- 3 The Figure Shows A Train Of Planetary Engravings Of The Compound Type Not To Scale Which Has The Following Data 1 (170.28 KiB) Viewed 10 times
N2 N3 N4 N5 NG 02 06 Oarm=brazo 30 25 45 50 200 ? 20 -50 6 3 w 4 5 Arm Arm Arm co 2 2 ذها 3 Bearing
