Q2a. A plate having height a mm and width b mm is exposed to stresses that create uniform strains Ex, Ey, and Yxy (micro

Post by answerhappygod »

Q2a A Plate Having Height A Mm And Width B Mm Is Exposed To Stresses That Create Uniform Strains Ex Ey And Yxy Micro 1
Q2a A Plate Having Height A Mm And Width B Mm Is Exposed To Stresses That Create Uniform Strains Ex Ey And Yxy Micro 1 (156.3 KiB) Viewed 20 times
a=26
b=24
Ex=328
Ey=266
Yyx=(-363)

Please solve this as soon as possible 🙏

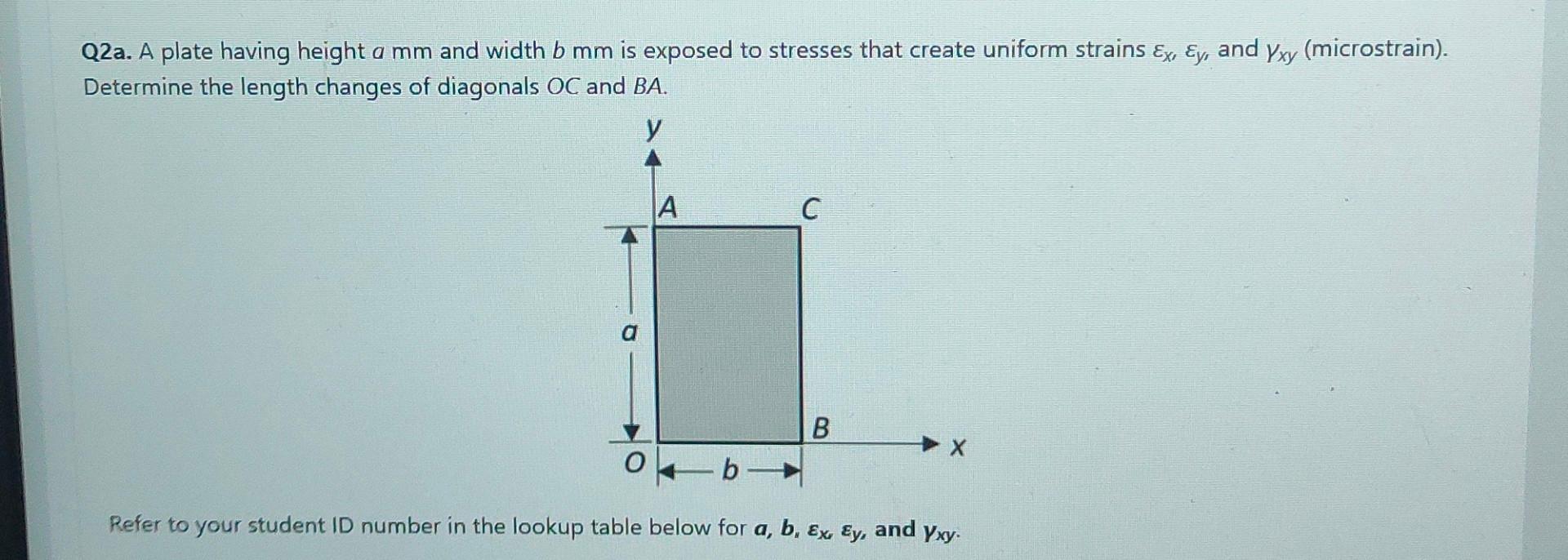

Q2a. A plate having height a mm and width b mm is exposed to stresses that create uniform strains Ex, Ey, and Yxy (microstrain). Determine the length changes of diagonals OC and BA. у A С B o -b Refer to your student ID number in the lookup table below for a, b, Ex Ey, and Yxy.
