Q3. A thin rectangular plate of thickness t is subjected to stresses that can be represented by the following stress fun

[answerhappygod]

Q3 A Thin Rectangular Plate Of Thickness T Is Subjected To Stresses That Can Be Represented By The Following Stress Fun 1 (37.72 KiB) Viewed 14 times

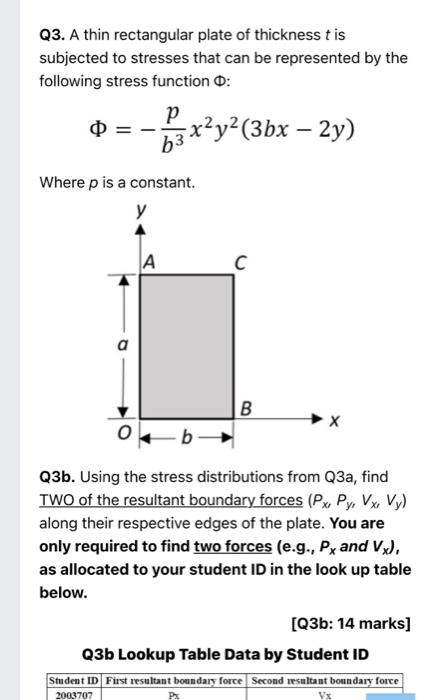

Q3. A thin rectangular plate of thickness t is subjected to stresses that can be represented by the following stress function : р 5x2y2(3bx – 2y) b3 Where p is a constant. у А С 00 o b- Q3b. Using the stress distributions from Q3a, find TWO of the resultant boundary forces (Px. Py, Vx Vy) along their respective edges of the plate. You are only required to find two forces (e.g., Px and Vx). as allocated to your student ID in the look up table below. [Q3b: 14 marks] Q3b Lookup Table Data by Student ID Student ID First resultant boundary force Second resultant boundary force 2003707 Vx
