Question 1: (Total 15 Marks) Drive the mathematical model of the suspension system in Figure 1 as per the following sche

Post by answerhappygod »

Question 1 Total 15 Marks Drive The Mathematical Model Of The Suspension System In Figure 1 As Per The Following Sche 1
Question 1 Total 15 Marks Drive The Mathematical Model Of The Suspension System In Figure 1 As Per The Following Sche 1 (174.5 KiB) Viewed 16 times
please solve this question completely and perfectly. write the complete mathematical model with explanation.
I will sure like solution and will rate up the work. thanks
I need solution within 48 hours from now.

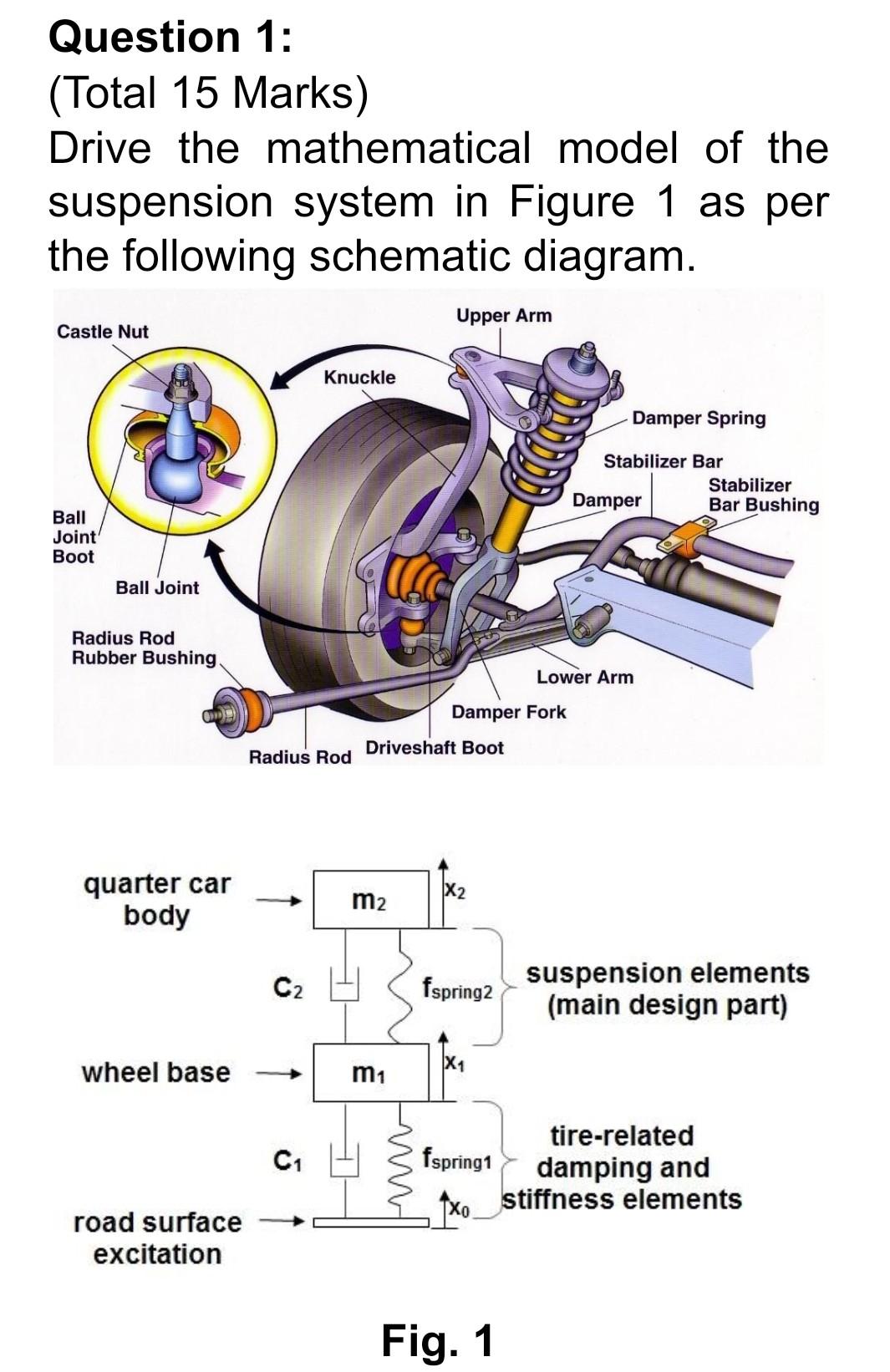

Question 1: (Total 15 Marks) Drive the mathematical model of the suspension system in Figure 1 as per the following schematic diagram. Upper Arm Castle Nut Knuckle Damper Spring Stabilizer Bar Stabilizer Damper Bar Bushing Ball Joint Boot Ball Joint Radius Rod Rubber Bushing Lower Arm Damper Fork Driveshaft Boot Radius Rod X2 quarter car body m2 C2 fspring2 suspension elements (main design part) X1 wheel base m1 C1 tire-related fspring1 damping and stiffness elements road surface excitation Fig. 1
