2. Consider the Rankine cycle having one closed feed water heater with drain sent backward. The maximum temperature and

Post by answerhappygod »

2 Consider The Rankine Cycle Having One Closed Feed Water Heater With Drain Sent Backward The Maximum Temperature And 1
2 Consider The Rankine Cycle Having One Closed Feed Water Heater With Drain Sent Backward The Maximum Temperature And 1 (40.03 KiB) Viewed 15 times

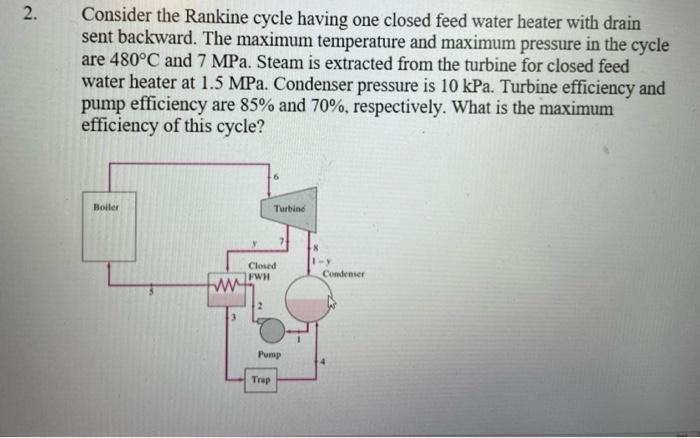

2. Consider the Rankine cycle having one closed feed water heater with drain sent backward. The maximum temperature and maximum pressure in the cycle are 480°C and 7 MPa. Steam is extracted from the turbine for closed feed water heater at 1.5 MPa. Condenser pressure is 10 kPa. Turbine efficiency and pump efficiency are 85% and 70%, respectively. What is the maximum efficiency of this cycle? Boiler Turbind Closed FWH Condenser w Pump Trap
