Find the efficiency and the net power output of the following cycle. Pump and turbine isentropic efficiencies are 70% an

[answerhappygod]

Find The Efficiency And The Net Power Output Of The Following Cycle Pump And Turbine Isentropic Efficiencies Are 70 An 1 (45.36 KiB) Viewed 14 times

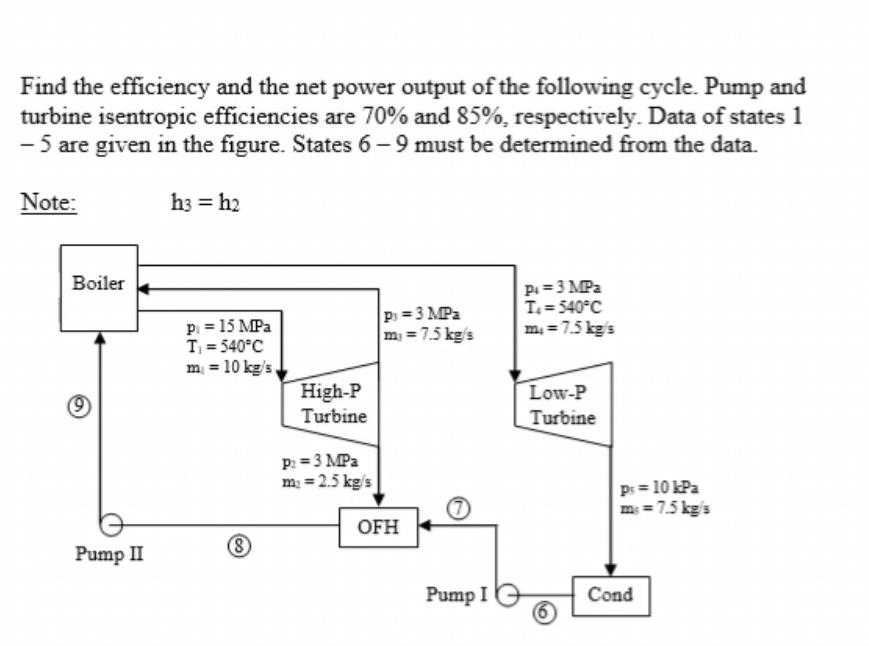

Find the efficiency and the net power output of the following cycle. Pump and turbine isentropic efficiencies are 70% and 85%, respectively. Data of states 1 - 5 are given in the figure. States 6-9 must be determined from the data. Note: h3 = h2 Boiler P: = 3 MPa Ti = 340°C m = 7.5 kg p = 15 MPa T = 540°C m = 10 kg's p =31P m = 7.5 kg's High-P Turbine Low-P Turbine P2 = 3 MPa m2 = 2.5 kg's ps = 10 kPa me = 7.5 kgs OFH 8 Pump II Pump I Cond
