The cantilever beam is subjected to a concentrated load of P = 18 kips. The cross-sectional dimensions of the rectangula

Post by answerhappygod »

The Cantilever Beam Is Subjected To A Concentrated Load Of P 18 Kips The Cross Sectional Dimensions Of The Rectangula 1
The Cantilever Beam Is Subjected To A Concentrated Load Of P 18 Kips The Cross Sectional Dimensions Of The Rectangula 1 (105.7 KiB) Viewed 12 times

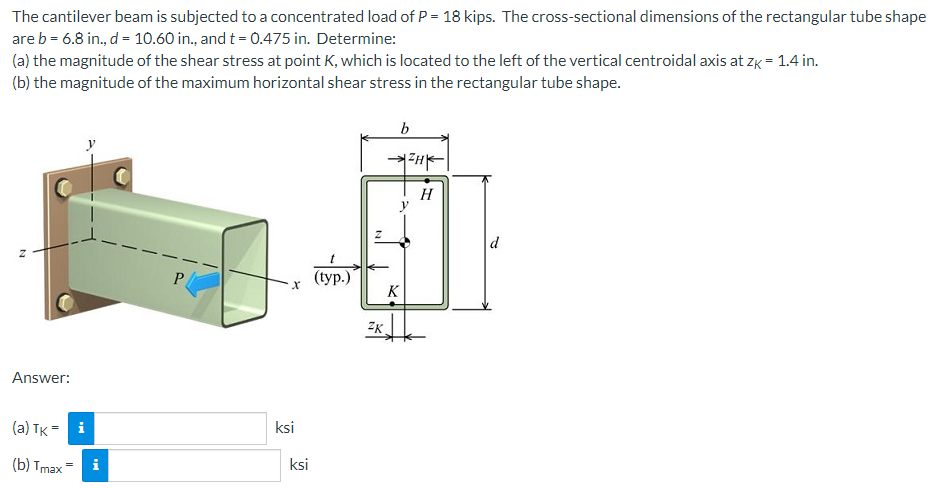

The cantilever beam is subjected to a concentrated load of P = 18 kips. The cross-sectional dimensions of the rectangular tube shape are b = 6.8 in., d = 10.60 in., and t = 0.475 in. Determine: (a) the magnitude of the shear stress at point K, which is located to the left of the vertical centroidal axis at ZK= 1.4 in. (b) the magnitude of the maximum horizontal shear stress in the rectangular tube shape. b 여래서 H Y d N Р (typ.) X K 2K Answer: (a) TK = i ksi ksi (b) Tmax
