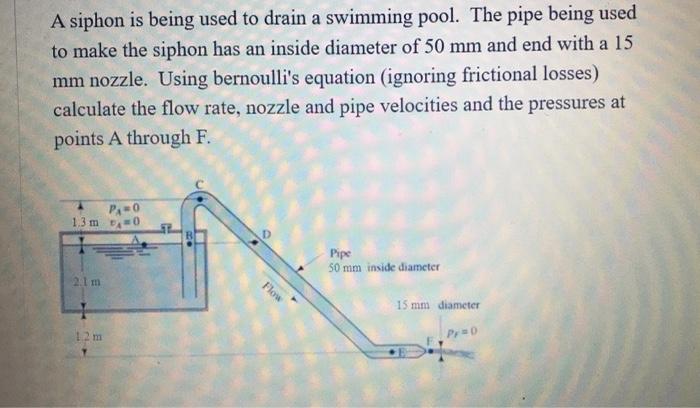

A siphon is being used to drain a swimming pool. The pipe being used to make the siphon has an inside diameter of 50 mm and end with a 15 mm nozzle. Using bernoulli's equation (ignoring frictional losses) calculate the flow rate, nozzle and pipe velocities and the pressures at points A through F. P=0 1.3 m 10 Pipe 50 mm inside diameter Flow 15 mm diameter 12 m P=0

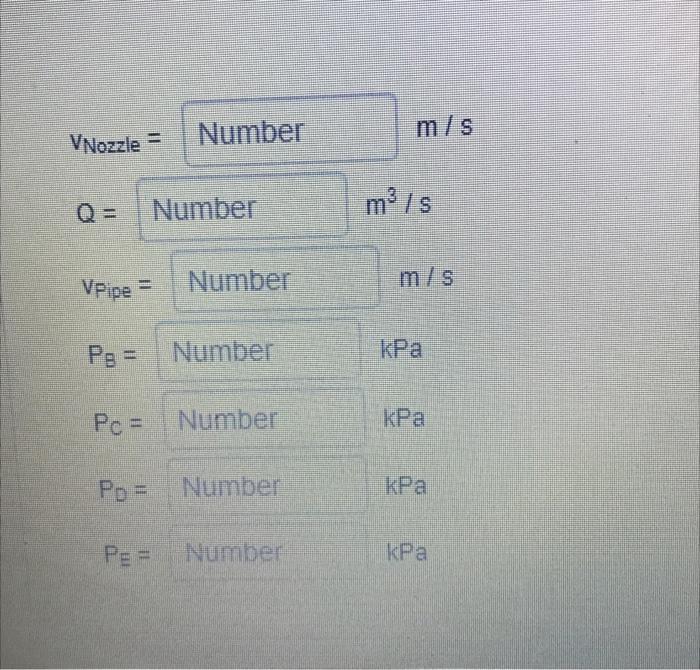

Number m/s VNozzle = Number mºis Number m/s VPipe Pg = Number Po = Number kPa Po= Number kPa Per Number kPa
