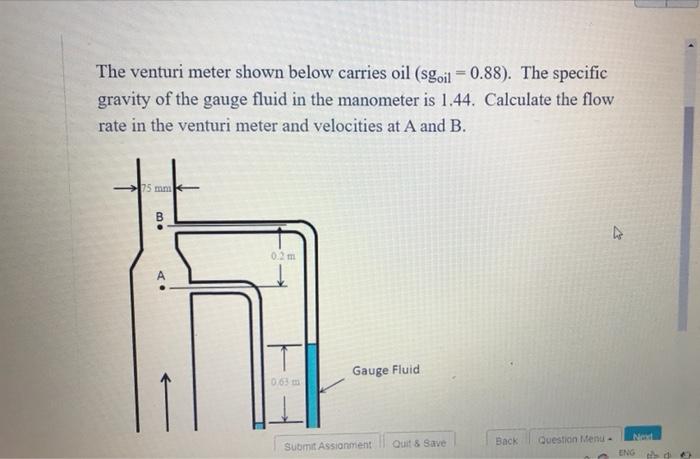

The venturi meter shown below carries oil (sgoil = 0.88). The specific gravity of the gauge fluid in the manometer is 1.44. Calculate the flow rate in the venturi meter and velocities at A and B. 75 mm B . A 0.2 Gauge Fluid 0163 Qui & Save Back Question Menu Submit Assionment ENG

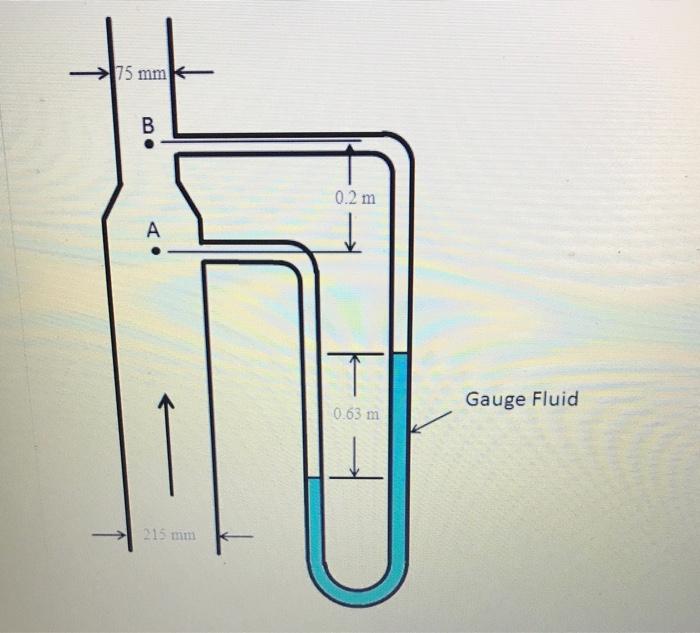

75 mm B 0.2 m A Gauge Fluid 0.63 m 215 mm

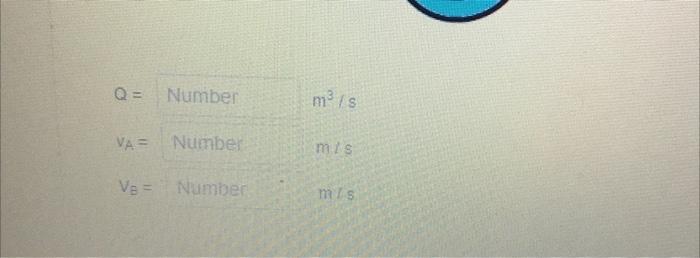

Q= Number mis VA Number mis Va = Number mis
