1) For this problem use the attached semi-log graph paper. For full credit, properly label the frequency in rad/sec and
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1) For this problem use the attached semi-log graph paper. For full credit, properly label the frequency in rad/sec and

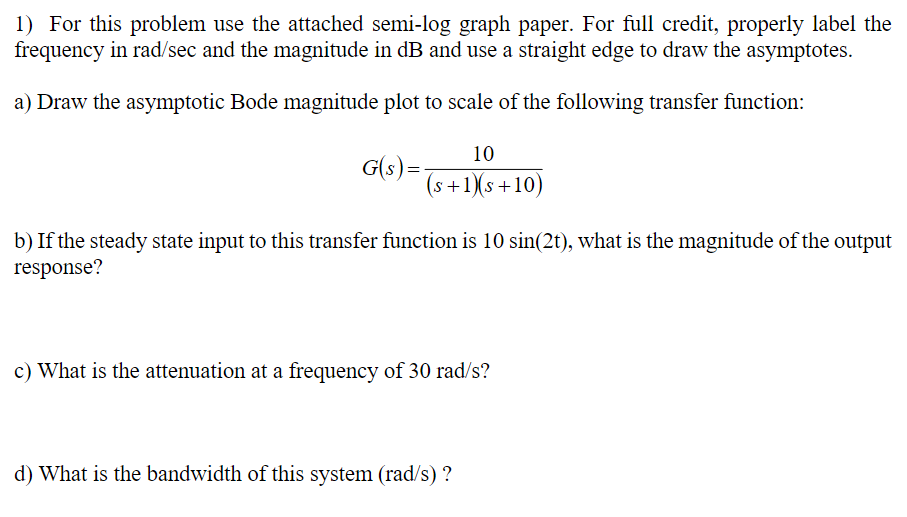

1) For this problem use the attached semi-log graph paper. For full credit, properly label the frequency in rad/sec and the magnitude in dB and use a straight edge to draw the asymptotes. a) Draw the asymptotic Bode magnitude plot to scale of the following transfer function: 10 G(S)= (s +1)(s +10) b) If the steady state input to this transfer function is 10 sin(2t), what is the magnitude of the output response? c) What is the attenuation at a frequency of 30 rad/s? d) What is the bandwidth of this system (rad/s)?
