For the beam and loading shown, a) Draw the shear and bending-moment diagrams. b) Determine the maximum absolute value o

Post by answerhappygod »

For The Beam And Loading Shown A Draw The Shear And Bending Moment Diagrams B Determine The Maximum Absolute Value O 1
For The Beam And Loading Shown A Draw The Shear And Bending Moment Diagrams B Determine The Maximum Absolute Value O 1 (329.05 KiB) Viewed 16 times
Please solve clearly and in order

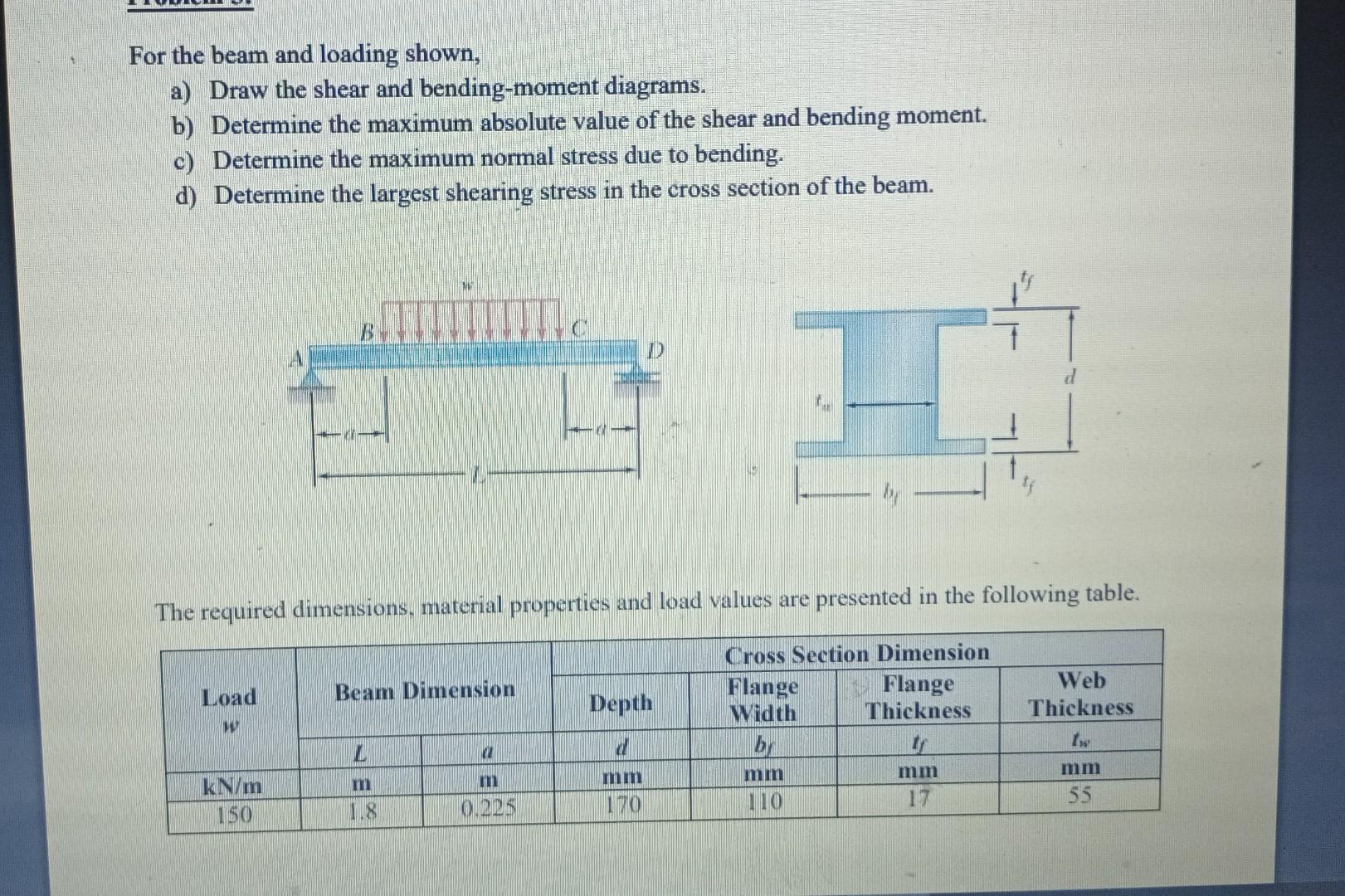

For the beam and loading shown, a) Draw the shear and bending-moment diagrams. b) Determine the maximum absolute value of the shear and bending moment. c) Determine the maximum normal stress due to bending, d) Determine the largest shearing stress in the cross section of the beam. D by The required dimensions, material properties and load values are presented in the following table. Load Beam Dimension Depth Web Thickness Cross Section Dimension Flange Flange Width Thickness by mm 110 17 22 mm kN/m 150 B mm 55 1.8 0.225 170
