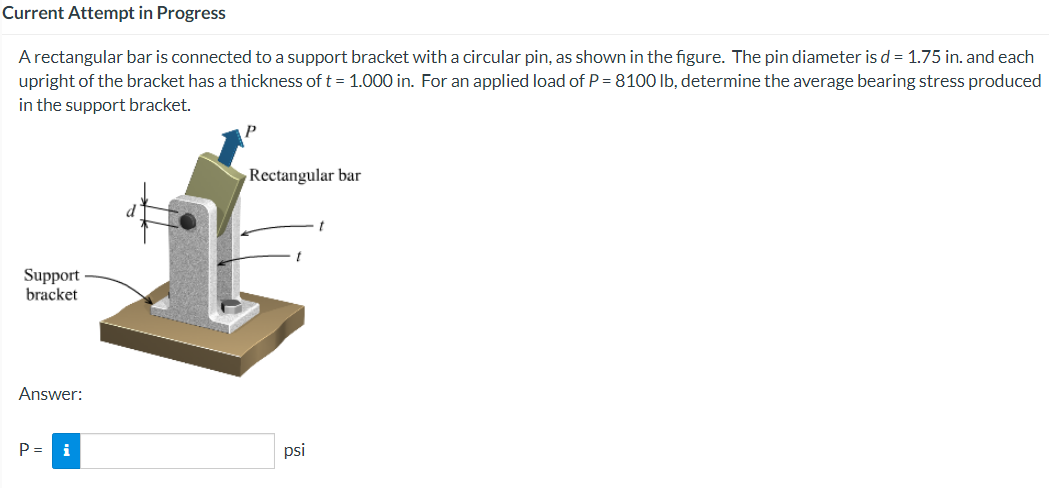

Current Attempt in Progress A rectangular bar is connected to a support bracket with a circular pin, as shown in the figure. The pin diameter is d = 1.75 in, and each upright of the bracket has a thickness of t = 1.000 in. For an applied load of P= 8100 lb, determine the average bearing stress produced in the support bracket. Rectangular bar d Support bracket Answer: P= i psi
