1 Below Is A Drawing Of A Link Draw This Drawing Using Parametric Constraints And Parametric 2 Turn Off The Parametric 1 (23.13 KiB) Viewed 10 times
The program used for this question is AUTOCAD. (Needs to
be completed using AutoCAD)

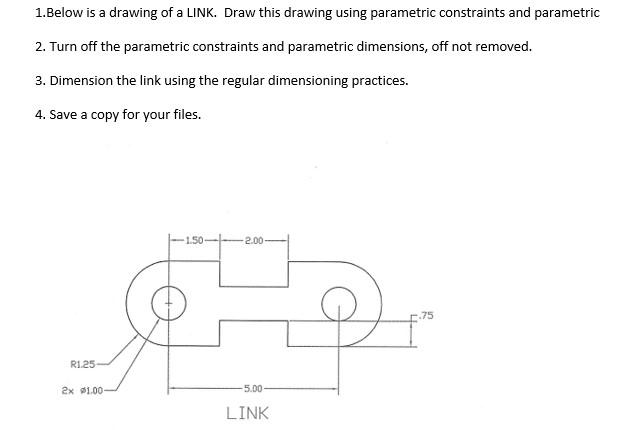

1.Below is a drawing of a LINK. Draw this drawing using parametric constraints and parametric 2. Turn off the parametric constraints and parametric dimensions, off not removed. 3. Dimension the link using the regular dimensioning practices. 4. Save a copy for your files. 1.50 2.00 .75 R1.25 2x 41.00 5.00 LINK
