Question 4: A helical spring with squared and ground ends is required to exert a force of 70 lb at a length that cannot

Post by answerhappygod »

Question 4 A Helical Spring With Squared And Ground Ends Is Required To Exert A Force Of 70 Lb At A Length That Cannot 1
Question 4 A Helical Spring With Squared And Ground Ends Is Required To Exert A Force Of 70 Lb At A Length That Cannot 1 (43.71 KiB) Viewed 22 times
Please show all the working using these values

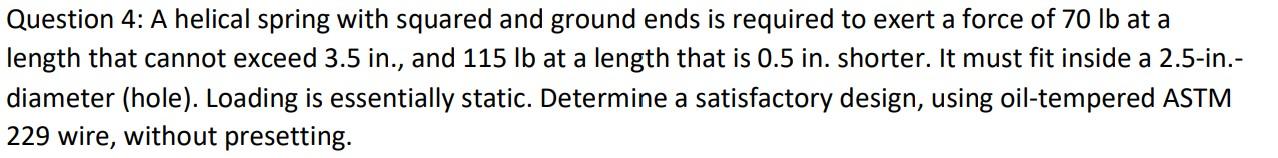

Question 4: A helical spring with squared and ground ends is required to exert a force of 70 lb at a length that cannot exceed 3.5 in., and 115 lb at a length that is 0.5 in. shorter. It must fit inside a 2.5-in.- diameter (hole). Loading is essentially static. Determine a satisfactory design, using oil-tempered ASTM 229 wire, without presetting.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
