Consider the following unity feedback system: R(s) + C(s) K 10 s(0.001s +1) Select the correct value of K in order to yi

Post by answerhappygod »

Consider The Following Unity Feedback System R S C S K 10 S 0 001s 1 Select The Correct Value Of K In Order To Yi 1
Consider The Following Unity Feedback System R S C S K 10 S 0 001s 1 Select The Correct Value Of K In Order To Yi 1 (46.73 KiB) Viewed 11 times

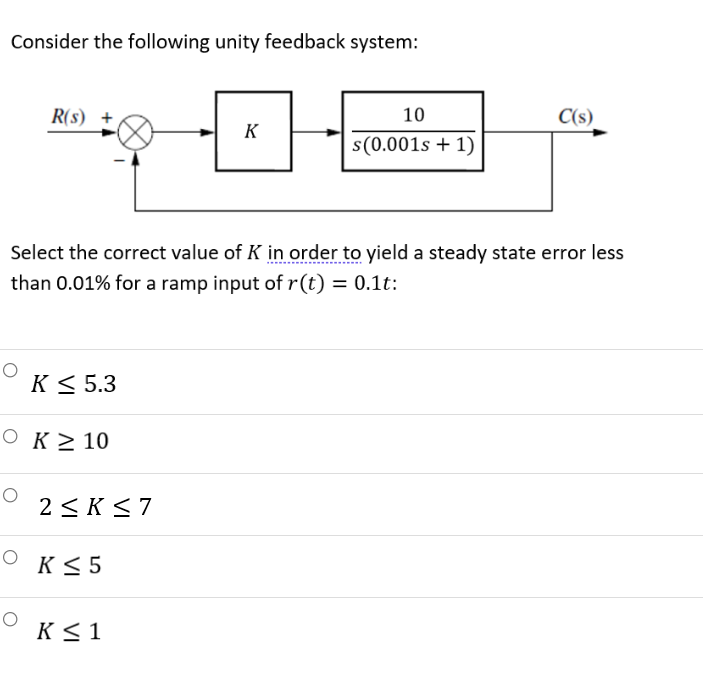

Consider the following unity feedback system: R(s) + C(s) K 10 s(0.001s +1) Select the correct value of K in order to yield a steady state error less than 0.01% for a ramp input of r(t) = 0.1t: K < 5.3 OK > 10 O 2 <K <7 O K <5 о K<1
