а Problemy Find the reactine at A and B (A is pinned and B is a roller support for the Beam below. Draw the shear anel m

Post by answerhappygod »

1
1 (61.85 KiB) Viewed 12 times

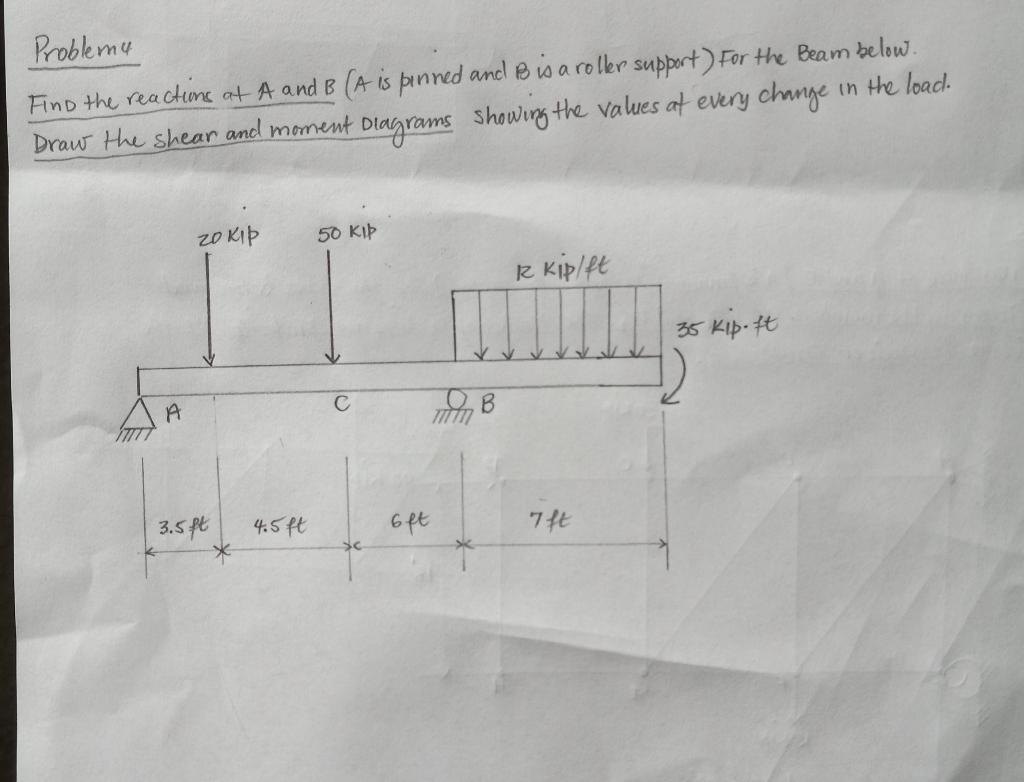

а Problemy Find the reactine at A and B (A is pinned and B is a roller support for the Beam below. Draw the shear anel moment Diagrams Showing the values at every change in the load. ZOKIP 50 KIP ekiplet 35 kip.it C A TOT 3.5 ft 4.5 ft 6ft 7ft
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
