The air velocity in the duct in the figure below is 650 ft/s. The air static temperature is 100°F. The value of h is 10

Post by answerhappygod »

The Air Velocity In The Duct In The Figure Below Is 650 Ft S The Air Static Temperature Is 100 F The Value Of H Is 10 1
The Air Velocity In The Duct In The Figure Below Is 650 Ft S The Air Static Temperature Is 100 F The Value Of H Is 10 1 (40.22 KiB) Viewed 10 times

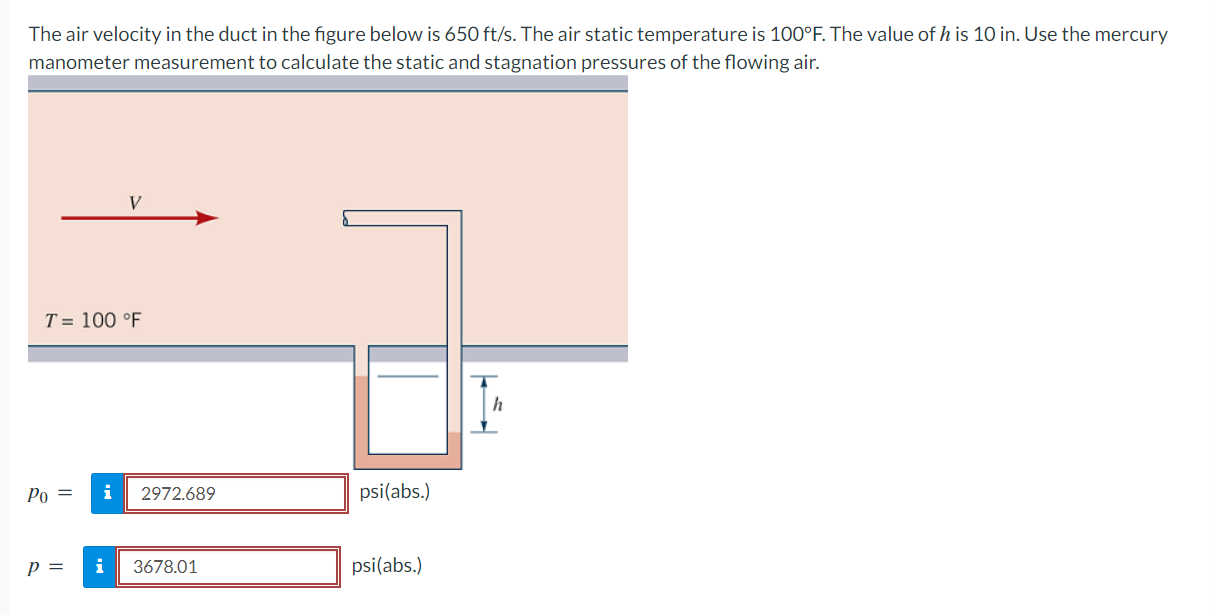

The air velocity in the duct in the figure below is 650 ft/s. The air static temperature is 100°F. The value of h is 10 in. Use the mercury manometer measurement to calculate the static and stagnation pressures of the flowing air. V T = 100 °F h Po = i 2972.689 psi(abs.) P = i 3678.01 psi(abs.)
