Problem #4) (20 points) (NOTE: 1" Draw FBD (5 point)} A vehicle suspension system is given in Figure 2. Write the equati

[answerhappygod]

Problem 4 20 Points Note 1 Draw Fbd 5 Point A Vehicle Suspension System Is Given In Figure 2 Write The Equati 1 (27.62 KiB) Viewed 16 times

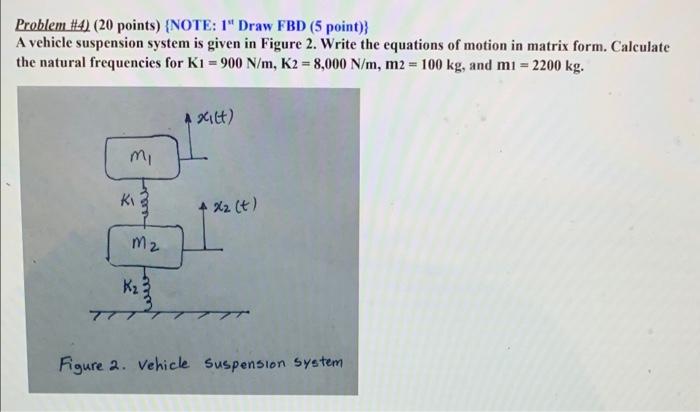

Problem #4) (20 points) (NOTE: 1" Draw FBD (5 point)} A vehicle suspension system is given in Figure 2. Write the equations of motion in matrix form. Calculate the natural frequencies for K1 = 900 N/m, K2 = 8,000 N/m, m2 = 100 kg, and mı = 2200 kg. A Xitt) my Кі heart X2 (4) m2 R23 للا 7777 Figure 2. Vehicle Suspension System
