Task 2: (20 Marks) Line Conditioning Circuits A low-pass filter (LPF) is a filter that passes signals with a frequency l

[answerhappygod]

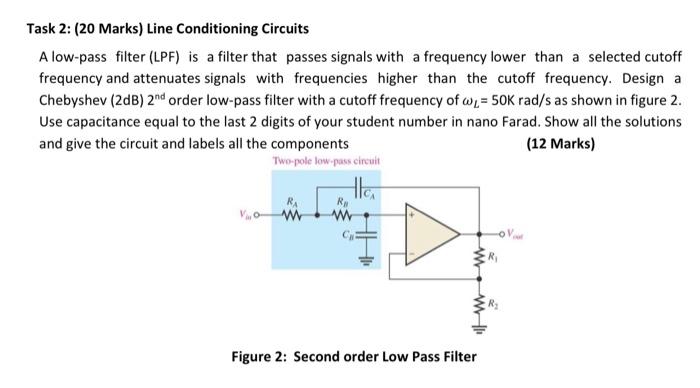

Task 2 20 Marks Line Conditioning Circuits A Low Pass Filter Lpf Is A Filter That Passes Signals With A Frequency L 1 (33.91 KiB) Viewed 14 times

Task 2: (20 Marks) Line Conditioning Circuits A low-pass filter (LPF) is a filter that passes signals with a frequency lower than a selected cutoff frequency and attenuates signals with frequencies higher than the cutoff frequency. Design a Chebyshev (2dB) 2nd order low-pass filter with a cutoff frequency of WL= 50K rad/s as shown in figure 2. Use capacitance equal to the last 2 digits of your student number in nano Farad. Show all the solutions and give the circuit and labels all the components (12 Marks) Two-pole low-pass circuit Hla RA w WW Figure 2: Second order Low Pass Filter
