1.1 (B). A rectangular-sectioned beam of 75 mm x 50 mm cross-section is used as a simply supported beam and carries a un

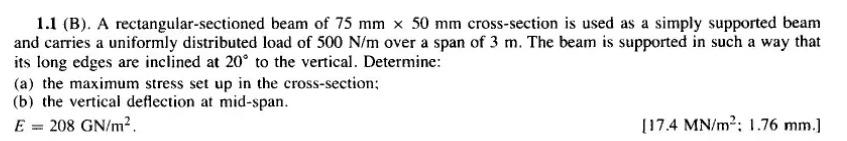

1.1 (B). A rectangular-sectioned beam of 75 mm x 50 mm cross-section is used as a simply supported beam and carries a uniformly distributed load of 500 N/m over a span of 3 m. The beam is supported in such a way that its long edges are inclined at 20° to the vertical. Determine: (a) the maximum stress set up in the cross-section; (b) the vertical deflection at mid-span. E 208 GN/m2 [17.4 MN/mº: 1.76 mm.)
