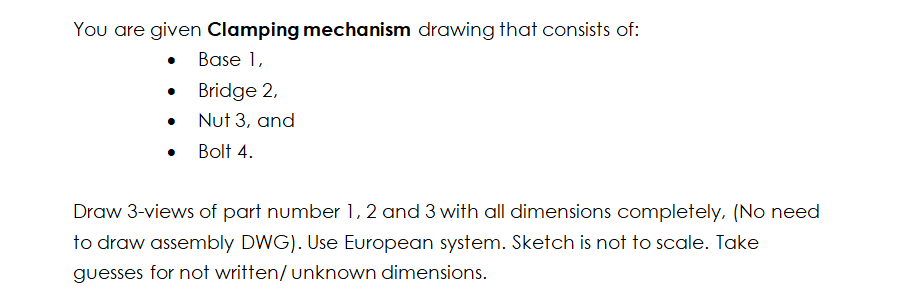

You are given Clamping mechanism drawing that consists of: • Base 1, Bridge 2 Nut 3, and • Bolt 4. . . Draw 3-views of part number 1, 2 and 3 with all dimensions completely, (No need to draw assembly DWG). Use European system. Sketch is not to scale. Take guesses for not written/ unknown dimensions.

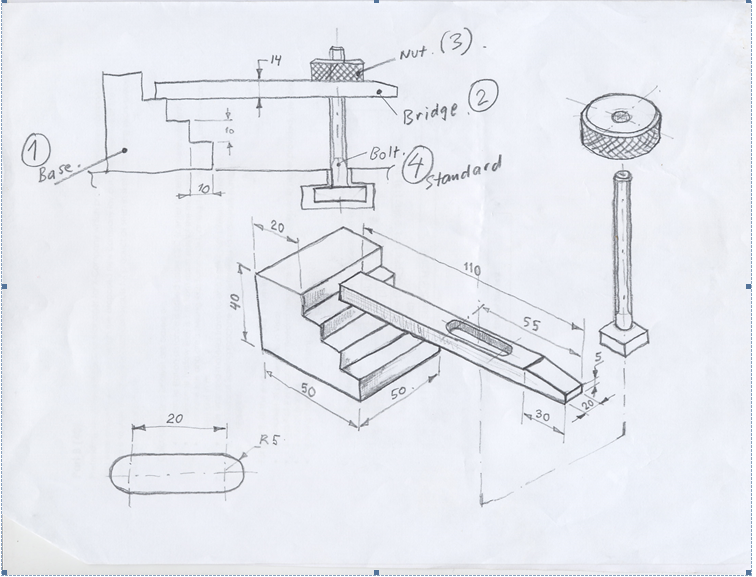

-14 nut. (3) (2) Bridge fo 6 -Bolt. Base. Joh Standard 20 7 110 On 55 50 50 20 30 20 1 R5
