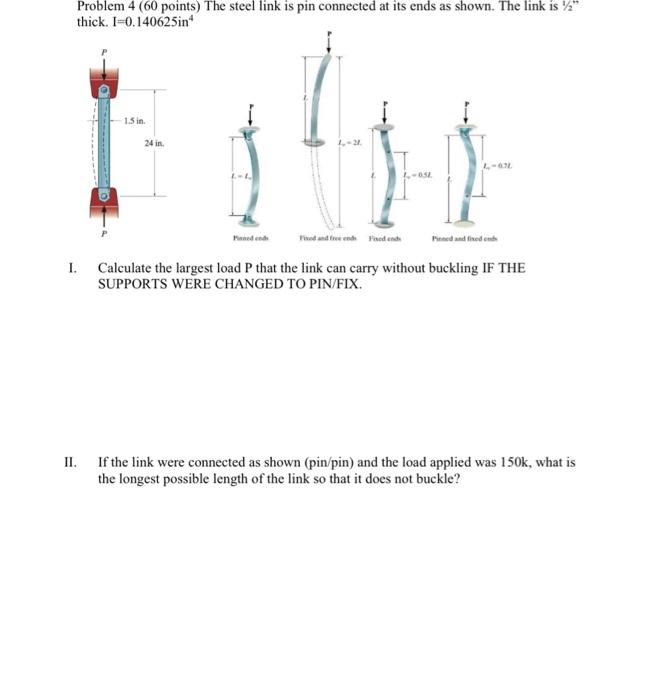

Problem 4 (60 points) The steel link is pin connected at its ends as shown. The link is 1/2" thick. 1-0.140625in 1.5 in.
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Problem 4 (60 points) The steel link is pin connected at its ends as shown. The link is 1/2" thick. 1-0.140625in 1.5 in.
Problem 4 (60 points) The steel link is pin connected at its ends as shown. The link is 1/2" thick. 1-0.140625in 1.5 in. I 24 in. . 051 edhe Pied and fresh Predah Pedandfinden I. Calculate the largest load P that the link can carry without buckling IF THE SUPPORTS WERE CHANGED TO PIN/FIX. II. If the link were connected as shown (pin/pin) and the load applied was 150k, what is the longest possible length of the link so that it does not buckle?
