Please execute the following statements about the mechanical component given in isometic view from two different angles

[answerhappygod]

Please Execute The Following Statements About The Mechanical Component Given In Isometic View From Two Different Angles 1 (334.76 KiB) Viewed 13 times

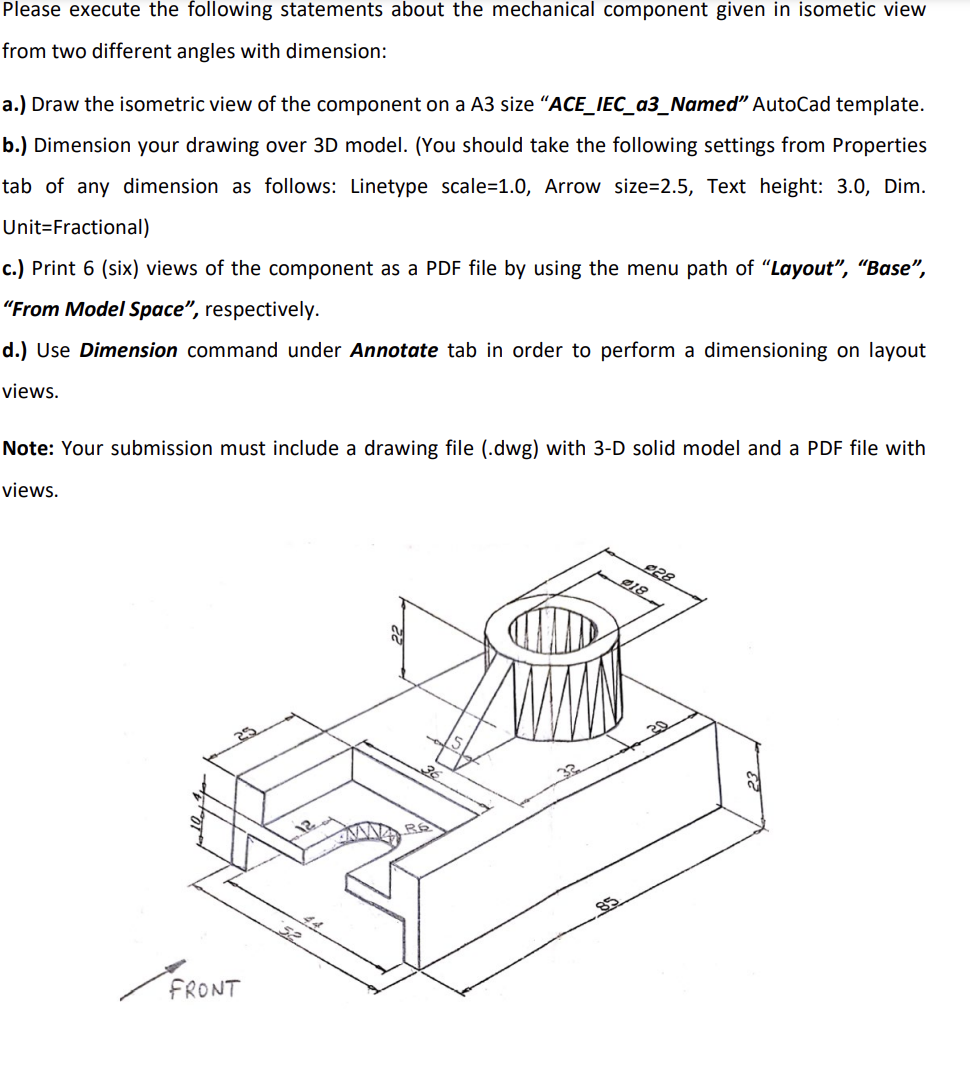

Please execute the following statements about the mechanical component given in isometic view from two different angles with dimension: a.) Draw the isometric view of the component on a A3 size “ACE_IEC_a3_Named" AutoCad template. b.) Dimension your drawing over 3D model. (You should take the following settings from Properties tab of any dimension as follows: Linetype scale=1.0, Arrow size=2.5, Text height: 3.0, Dim. Unit=Fractional) c.) Print 6 (six) views of the component as a PDF file by using the menu path of “Layout”, “Base", "From Model Space", respectively. d.) Use Dimension command under Annotate tab in order to perform a dimensioning on layout views. Note: Your submission must include a drawing file (.dwg) with 3-D solid model and a PDF file with views. 828 0187 FRONT
